Caterpillar

205

Excavator

Operating Weight
28,958 lb
Max Digging Depth
175 in
Max Digging Depth
193 in
Net Power
71.0 hp
All excavators

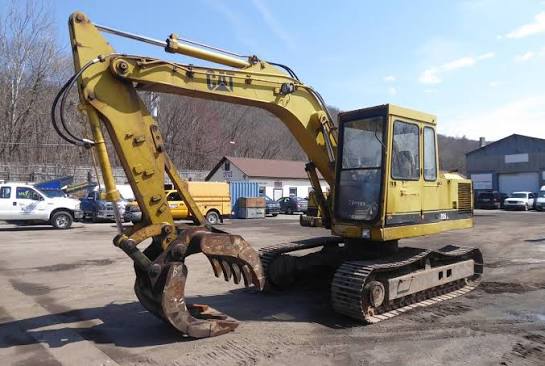

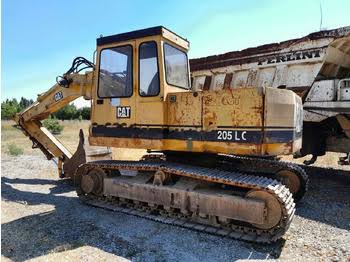

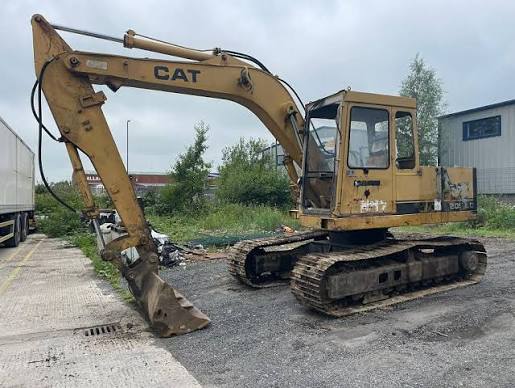

Caterpillar 205 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,958 lb
Fuel Capacity48.9 gal
Hydraulic Pump Flow Capacity49.2 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,351 psi
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity8.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.6 gal

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Power Measured @2,150 rpm
Net Power71.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground119 in
Tail Swing Radius76 in
Width to Outside of Tracks95 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge76 in
Max Travel Speed2.5 mph
Shoe Size20 in
Number of Shoes per Side47
Drawbar Pull15,354 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth175 in
Max Reach Along Ground283 in
Max Loading Height174 in
Max Cutting Height248 in
Shipping Length of Unit287 in
Shipping Height of Unit120 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth193 in
Max Cutting Height253 in
Max Loading Height181 in
Max Reach Along Ground309 in
Shipping Length of Unit288 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth215 in
Max Cutting Height247 in
Max Loading Height176 in
Max Reach Along Ground323 in
Shipping Length of Unit288 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth166 in
Max Cutting Height293 in
Max Reach Along Ground299 in
Max Loading Height224 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth186 in
Max Reach Along Ground318 in
Max Cutting Height304 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth204 in
Max Reach Along Ground335 in
Max Cutting Height301 in
Shipping Height of Unit120 in
