Hitachi
Michigan
L70
Wheel Loader
51 specifications
1 / 5

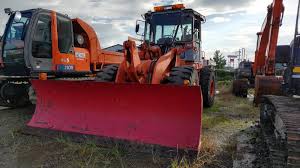

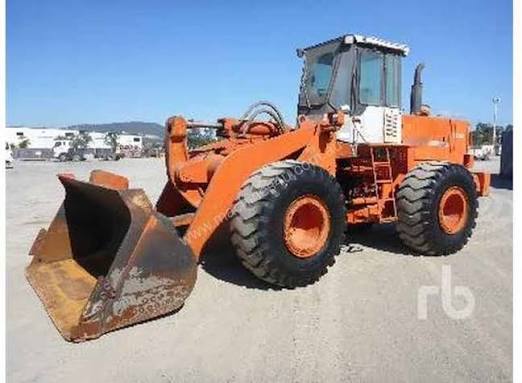

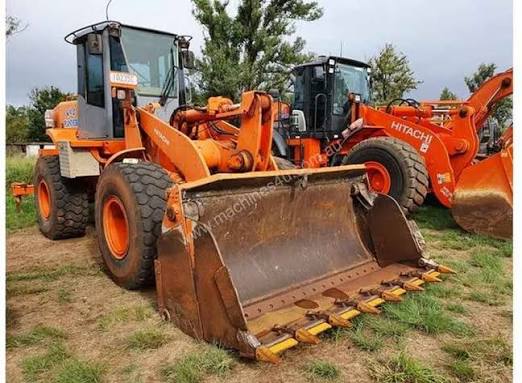

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 35,400 lb |
|---|---|
| Fuel Capacity | 75.1 gal |
| Tire Size | 23.5x25 |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Static Tipping Weight | 27,230 lb |
| Operating Voltage | 12 V |
| Turning Radius | 254 in |
| Engine Oil Fluid Capacity | 5.9 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 95 A |
| Front Axle/Diff Fluid Capacity | 6.1 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 7.6 gal |
| Transmission Fluid Capacity | 3.7 gal |
Engine
| Engine Model | 6076A |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 170.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 69.5 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.5 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 126 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 315 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 13.7 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.81 yd³ |
|---|---|
| Bucket Capacity - struck | 3.30 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 37,431 lb |
