Hitachi

LX190-7

Wheel Loader

Operating Weight
43,585 lb
Bucket Capacity - heaped
4.60 yd³
Net Power
222.0 hp
All wheel loaders

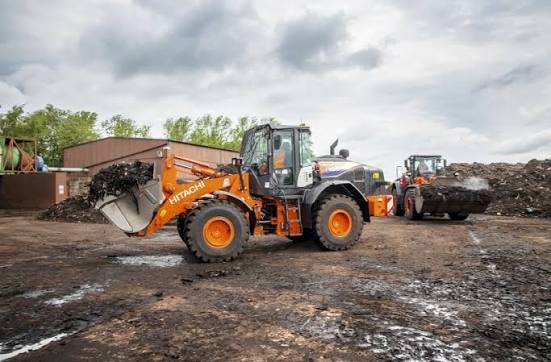

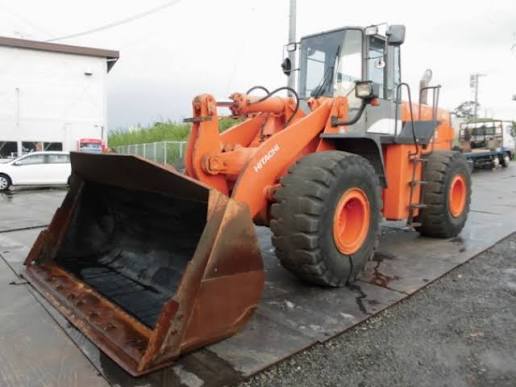

Hitachi LX190-7 Wheel Loader
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,585 lb
Fuel Capacity97.8 gal
Tire Size23.5-25-16PR L3
Turning Radius229 in

Engine

Engine specifications
Engine Model6D24TL
Displacement729 in³
Power Measured @2,100 rpm
Net Power222.0 hp

Hydraulic System

Hydraulic System specifications
Raise Time6.2 s
Lower Time3.3 s
Dump Time1.4 s

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab134 in
Wheelbase134 in
Width Over Tires117 in
Reach at Max Lift and Dump46 in
Length with Bucket on Ground336 in
Hinge Pin - Max Height166 in

Transmission

Transmission specifications
Max Speed - Forward21.5 mph
Max Speed - Reverse23.0 mph
Transmission Type4-speed full powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.60 yd³
Dump Clearance at Max Raise118 in
Breakout Force37,318 lb
Bucket Width121 in
