New Holland
W130
- Operating Weight
- 26,279 lb
- Bucket Capacity - heaped
- 2.60 yd³
- Gross Power
- 148.0 hp
- Net Power
- 136.0 hp
1 / 5

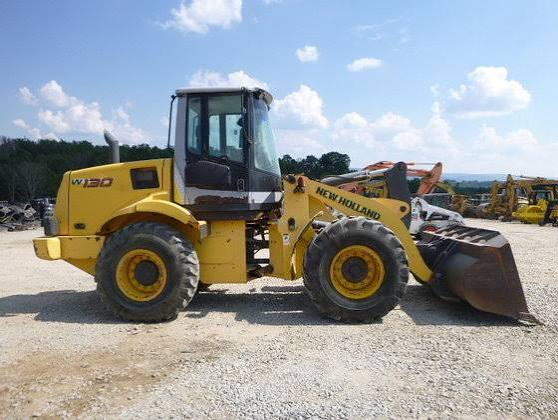

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 26,279 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 30.0 gal |
| Static Tipping Weight | 22,985 lb |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Engine Oil Fluid Capacity | 4.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Transmission Fluid Capacity | 5.0 gal |
Engine
| Engine Model | 668TA/M2 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 148.0 hp |
| Net Power | 136.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Direct Injection diesel |
| Torque Rise | 33.0 % |
Hydraulic System
| Pump Flow Capacity | 45.2 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 5.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | Variable-Displacement Piston Pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 115 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 91 in |
| Length with Bucket on Ground | 278 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | CountershaftPower shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.60 yd³ |
|---|---|
| Bucket Capacity - struck | 2.20 yd³ |
| Dump Clearance at Max Raise | 115 in |
| Breakout Force | 12,051 lb |
| Bucket Width | 103 in |
