Hitachi

ZX130H-3

Excavator

Operating Weight
27,558 lb
Max Digging Depth
220 in
Net Power
124.8 hp
All excavators

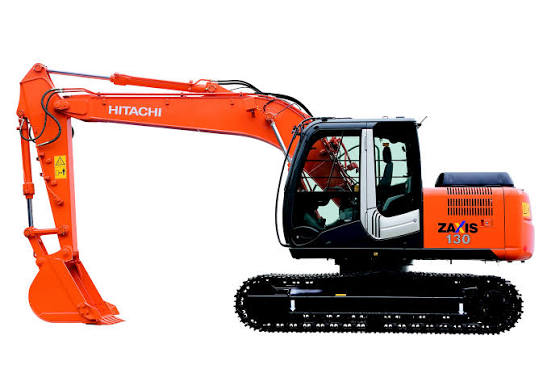

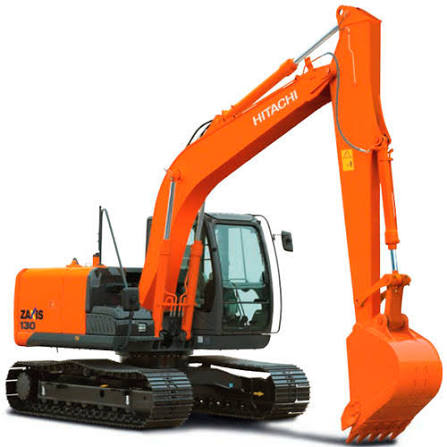

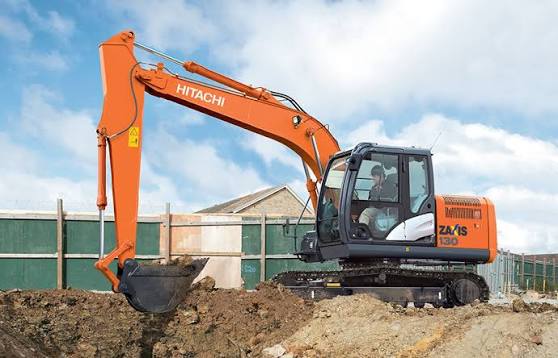

Hitachi ZX130H-3 Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,558 lb
Hydraulic Pump Flow Capacity61.9 gal/min
Hydraulic System Relief Valve Pressure5,076 psi

Engine

Engine specifications
Engine ModelAJ-4JJ1X
Displacement183 in³
Power Measured @1,800 rpm
Net Power124.8 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground114 in
Tail Swing Radius84 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth220 in
Max Reach Along Ground308 in
Max Loading Height235 in
Max Vertical Wall Digging Depth169 in
Shipping Length of Unit302 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
