Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

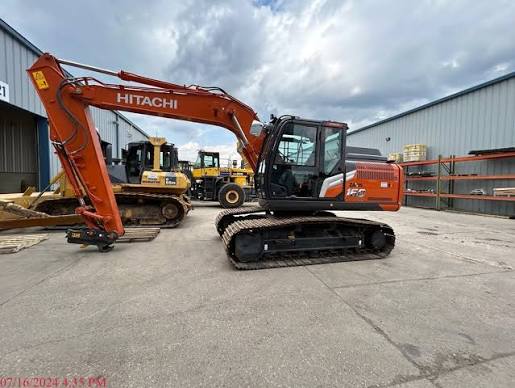

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Fuel Capacity | 74.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 73.0 gal/min |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.2 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AA-4BG1TC |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 110.0 hp |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 295 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 40 in |
| Digging Depth | 252 in |
| Digging Reach | 252 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 214 in |
|---|---|
| Max Reach Along Ground | 322 in |
| Max Loading Height | 231 in |
| Max Vertical Wall Digging Depth | 169 in |
| Max Cutting Height | 337 in |
| Shipping Length of Unit | 341 in |
| Shipping Height of Unit | 124 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 236 in |
|---|---|
| Max Vertical Wall Digging Depth | 204 in |
| Max Cutting Height | 350 in |
| Max Loading Height | 244 in |
| Max Reach Along Ground | 343 in |
| Shipping Length of Unit | 336 in |
| Shipping Height of Unit | 114 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 256 in |
|---|---|
| Max Cutting Height | 360 in |
| Max Loading Height | 252 in |
| Max Vertical Wall Digging Depth | 224 in |
| Max Reach Along Ground | 361 in |
| Shipping Length of Unit | 337 in |
| Shipping Height of Unit | 124 in |
