Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

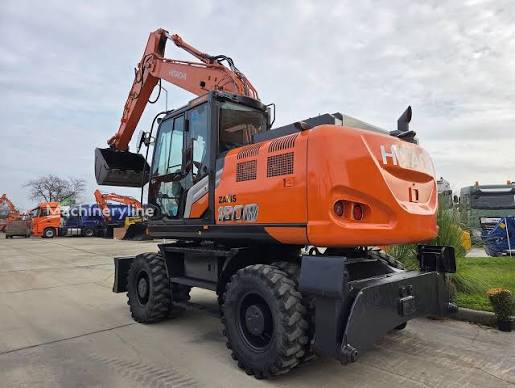

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Fuel Capacity | 74.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 105.7 gal/min |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.2 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Oscillating Axle Angle | 12 ° |
| Front Diff Fluid Capacity | 2.3 gal |
| Rear Diff Fluid Capacity | 3.0 gal |
Engine
| Engine Model | 4BG1XABF |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1,800 rpm |
| Net Torque | 330 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 104 in |
| Overall Width | 8 in |
| Tail Swing Radius | 97 in |
| Digging Depth | 228 in |
| Digging Reach | 372 in |
| Upper Structure Clearance | 50 in |
| Overall Width - Outriggers Down | 146 in |
Transmission
| Max Travel Speed | 18.7 mph |
|---|---|
| Transmission Type | 2-gear powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 211 in |
|---|---|
| Max Cutting Height | 362 in |
| Max Reach Along Ground | 354 in |
| Max Loading Height | 252 in |
| Shipping Length of Unit | 355 in |
| Shipping Height of Unit | 124 in |
| Max Vertical Wall Dig Depth | 189 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 228 in |
|---|---|
| Max Cutting Height | 366 in |
| Max Reach Along Ground | 369 in |
| Max Loading Height | 256 in |
| Shipping Height of Unit | 122 in |
| Shipping Length of Unit | 370 in |
| Max Vertical Wall Dig Depth | 205 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 248 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Reach Along Ground | 389 in |
| Max Loading Height | 270 in |
| Shipping Height of Unit | 134 in |
| Shipping Length of Unit | 370 in |
| Max Vertical Wall Dig Depth | 226 in |
