Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

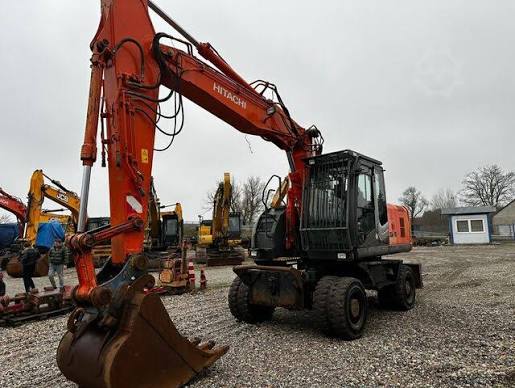

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Fuel Capacity | 76.7 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 99.9 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Oscillating Axle Angle | 14 ° |
| Front Diff Fluid Capacity | 2.6 gal |
| Rear Diff Fluid Capacity | 3.7 gal |
Engine
| Engine Model | AI-4HK1X |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,000 rpm |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged intercooled |
| Torque Measured @ | 1,500 rpm |
| Make | Isuzu |
| Net Torque | 483 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 104 in |
| Overall Width | 8 in |
| Tail Swing Radius | 93 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 135 in |
Transmission
| Max Travel Speed | 21.8 mph |
|---|---|
| Transmission Type | 2 speed power shift transmission and variable displacement axial piston type travel motor |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 230 in |
|---|---|
| Max Reach Along Ground | 377 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 212 in |
|---|---|
| Max Cutting Height | 361 in |
| Max Reach Along Ground | 356 in |
| Max Loading Height | 251 in |
| Shipping Length of Unit | 355 in |
| Shipping Height of Unit | 125 in |
| Max Vertical Wall Dig Depth | 190 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 230 in |
|---|---|
| Max Cutting Height | 365 in |
| Max Reach Along Ground | 371 in |
| Max Loading Height | 254 in |
| Shipping Height of Unit | 124 in |
| Shipping Length of Unit | 354 in |
| Max Vertical Wall Dig Depth | 207 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 250 in |
|---|---|
| Max Cutting Height | 379 in |
| Max Reach Along Ground | 391 in |
| Max Loading Height | 268 in |
| Shipping Height of Unit | 134 in |
| Shipping Length of Unit | 354 in |
| Max Vertical Wall Dig Depth | 227 in |
