Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

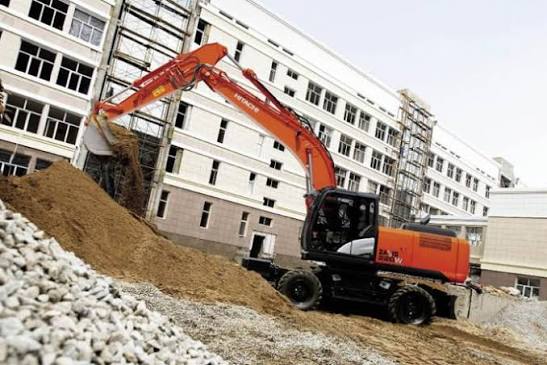

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Fuel Capacity | 93.8 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 100.0 gal/min |
| Hydraulic System Fluid Capacity | 89.9 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Hydraulic Pump Type | 2x piston pumps |
| Oscillating Axle Angle | 7 ° |
| Front Diff Fluid Capacity | 2.6 gal |
| Rear Diff Fluid Capacity | 3.5 gal |
Engine
| Engine Model | 4HK1X |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 159.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged and Aftercooled |
| Make | Isuzu |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 109 in |
| Overall Width | 8 in |
| Tail Swing Radius | 109 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 135 in |
Transmission
| Max Travel Speed | 17.1 mph |
|---|---|
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 248 in |
|---|---|
| Max Reach Along Ground | 400 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|---|
| Swing Torque | 43,789 lb-ft |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 248 in |
|---|---|
| Max Cutting Height | 402 in |
| Max Reach Along Ground | 393 in |
| Max Loading Height | 291 in |
| Shipping Length of Unit | 383 in |
| Shipping Height of Unit | 126 in |
| Max Vertical Wall Dig Depth | 221 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 240 in |
|---|---|
| Max Cutting Height | 417 in |
| Max Reach Along Ground | 384 in |
| Max Loading Height | 301 in |
| Shipping Height of Unit | 134 in |
| Shipping Length of Unit | 367 in |
| Max Vertical Wall Dig Depth | 207 in |
