Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

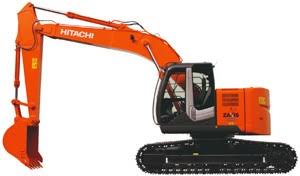

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Fuel Capacity | 71.4 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 102.5 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AA-6BGIT |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 147.0 hp |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 406 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 40 in |
| Digging Depth | 264 in |
| Digging Reach | 264 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 360 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Digging Depth | 198 in |
| Max Cutting Height | 417 in |
| Shipping Length of Unit | 362 in |
| Shipping Height of Unit | 125 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 268 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 438 in |
| Max Loading Height | 323 in |
| Max Reach Along Ground | 386 in |
| Shipping Length of Unit | 357 in |
| Shipping Height of Unit | 119 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 326 in |
|---|---|
| Max Cutting Height | 476 in |
| Max Loading Height | 362 in |
| Max Vertical Wall Digging Depth | 291 in |
| Max Reach Along Ground | 442 in |
| Shipping Length of Unit | 360 in |
| Shipping Height of Unit | 135 in |
