Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

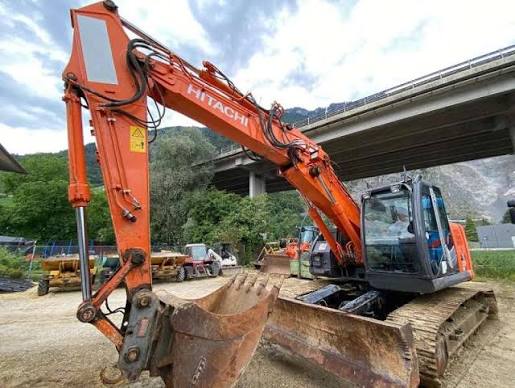

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Fuel Capacity | 84.6 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 112.1 gal/min |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.9 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AI-4HK1XYSA-02 |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,000 rpm |
| Aspiration | Turbocharged intercooled |
| Make | Isuzu |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 39 in |
| Digging Depth | 264 in |
| Digging Reach | 384 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 110 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 45,636 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 245 in |
|---|---|
| Max Reach Along Ground | 367 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Digging Depth | 206 in |
| Max Cutting Height | 417 in |
| Shipping Length of Unit | 384 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 433 in |
| Max Loading Height | 318 in |
| Max Reach Along Ground | 388 in |
| Shipping Length of Unit | 379 in |
| Shipping Height of Unit | 118 in |
