Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

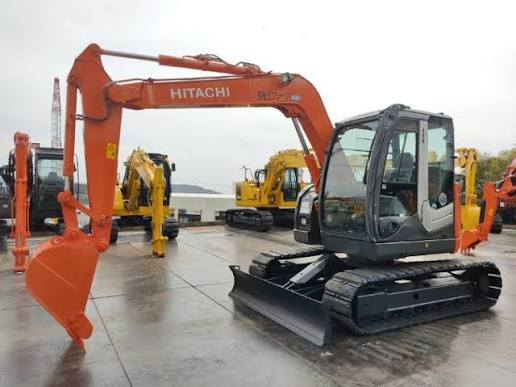

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Hydraulic Pump Flow Capacity | 42.1 gal/min |
|---|---|
| Hydraulic System Relief Valve Pressure | 3,844 psi |
Engine
| Engine Model | AU-4LE2X |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,000 rpm |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Tail Swing Radius | 52 in |
| Width to Outside of Tracks | 93 in |
Undercarriage
| Max Travel Speed | 3.2 mph |
|---|---|
| Shoe Size | 18 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 162 in |
|---|---|
| Max Reach Along Ground | 247 in |
| Max Loading Height | 202 in |
| Max Vertical Wall Digging Depth | 145 in |
| Shipping Length of Unit | 231 in |
| Shipping Height of Unit | 107 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|
