Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

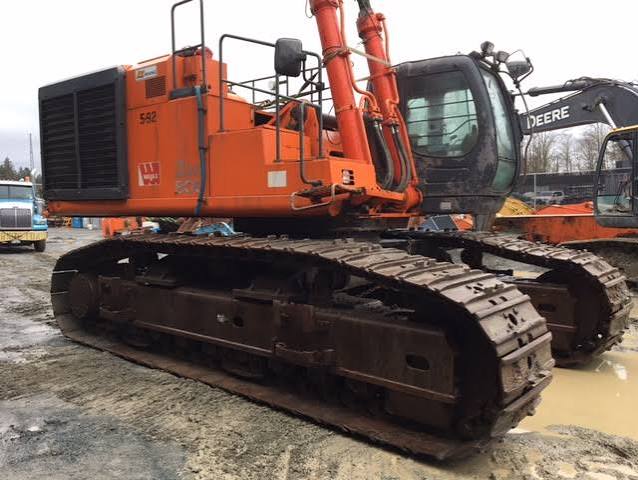

Image 1 of 5
Specifications
68 data points
Operating Specifications
| Fuel Capacity | 238.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 8.0 gal/min |
| Hydraulic System Fluid Capacity | 177.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 28.3 gal |
| Operating Voltage | 12 V |
| Swing Drive Fluid Capacity | 4.0 gal |
Engine
| Engine Model | BB-6WG1T |
|---|---|
| Displacement | 957 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 454.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 1,374 lb-ft |
Dimensions
| Ground Clearance | 35 in |
|---|---|
| Height - Top of Cab | 139 in |
| Length of Track on Ground | 202 in |
| Tail Swing Radius | 170 in |
| Width to Outside of Tracks | 173 in |
| Removal Counterweight Clearance | 64 in |
| Digging Depth | 468 in |
| Digging Reach | 468 in |
Undercarriage
| Ground Pressure | 15 psi |
|---|---|
| Track Gauge | 137 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.7 mph |
| Shoe Size | 26 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 285 in |
|---|---|
| Max Reach Along Ground | 490 in |
| Max Loading Height | 308 in |
| Max Vertical Wall Digging Depth | 172 in |
| Max Cutting Height | 461 in |
| Shipping Length of Unit | 564 in |
| Shipping Height of Unit | 176 in |
Bucket
| Reference Bucket Capacity | 4.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 5.00 yd³ |
| Minimum Bucket Capacity | 1.80 yd³ |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 350 in |
|---|---|
| Max Vertical Wall Digging Depth | 307 in |
| Max Cutting Height | 494 in |
| Max Loading Height | 336 in |
| Max Reach Along Ground | 551 in |
| Shipping Length of Unit | 564 in |
| Shipping Height of Unit | 176 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 381 in |
|---|---|
| Max Cutting Height | 524 in |
| Max Loading Height | 364 in |
| Max Vertical Wall Digging Depth | 354 in |
| Max Reach Along Ground | 585 in |
| Shipping Length of Unit | 564 in |
| Shipping Height of Unit | 176 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 417 in |
|---|---|
| Max Cutting Height | 533 in |
| Max Reach Along Ground | 619 in |
| Max Loading Height | 385 in |
| Max Vertical Wall Dig Depth | 362 in |
| Shipping Length of Unit | 564 in |
Boom/Stick Excavator Option 5
| Max Digging Depth | 475 in |
|---|---|
| Max Reach Along Ground | 688 in |
| Max Cutting Height | 571 in |
| Max Loading Height | 426 in |
| Max Vertical Wall Dig Depth | 408 in |
| Shipping Height of Unit | 176 in |
| Shipping Length of Unit | 564 in |
