Hitachi
Liugong
936E
Excavator
Specifications pending
1 / 5

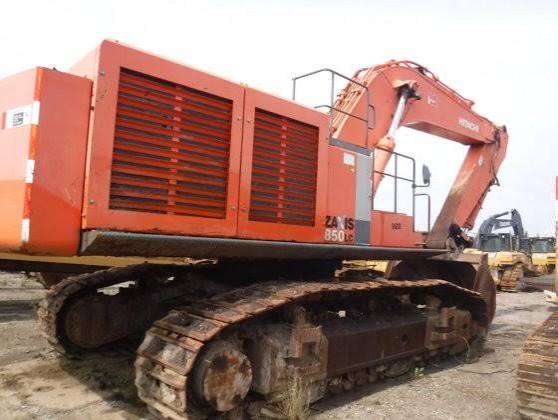

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Fuel Capacity | 295.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 279.0 gal/min |
| Hydraulic System Fluid Capacity | 208.7 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 15.1 gal |
| Cooling System Fluid Capacity | 30.7 gal |
| Swing Drive Fluid Capacity | 4.0 gal |
Engine
| Engine Model | AH-6WG1XYSA-03 |
|---|---|
| Displacement | 957 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 532.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 1,660 lb-ft |
| Make | Isuzu |
Dimensions
| Ground Clearance | 36 in |
|---|---|
| Height - Top of Cab | 144 in |
| Length of Track on Ground | 202 in |
| Tail Swing Radius | 181 in |
| Width to Outside of Tracks | 162 in |
| Removal Counterweight Clearance | 67 in |
| Digging Depth | 372 in |
| Digging Reach | 576 in |
Undercarriage
| Ground Pressure | 16 psi |
|---|---|
| Track Gauge | 137 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 26 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 282 in |
|---|---|
| Max Reach Along Ground | 474 in |
| Max Loading Height | 320 in |
| Max Vertical Wall Digging Depth | 162 in |
| Max Cutting Height | 474 in |
Bucket
| Reference Bucket Capacity | 4.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 5.90 yd³ |
| Minimum Bucket Capacity | 3.81 yd³ |
Swing Mechanism
| Swing Speed | 7 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 350 in |
|---|---|
| Max Vertical Wall Digging Depth | 283 in |
| Max Cutting Height | 514 in |
| Max Loading Height | 357 in |
| Max Reach Along Ground | 545 in |
| Shipping Length of Unit | 582 in |
| Shipping Height of Unit | 180 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 377 in |
|---|---|
| Max Cutting Height | 545 in |
| Max Loading Height | 384 in |
| Max Vertical Wall Digging Depth | 335 in |
| Max Reach Along Ground | 577 in |
