Dynapac
CP275
Pneumatic Roller
25 specifications
1 / 5

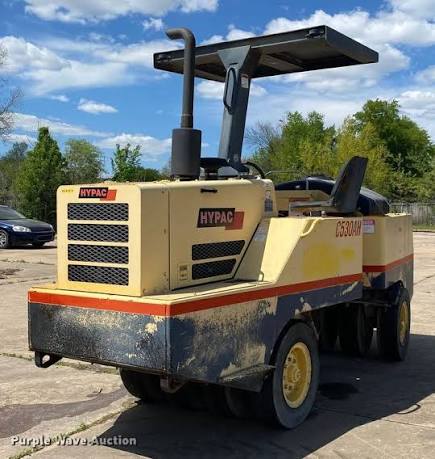

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Max Speed | 12.5 mph |
|---|---|
| Fuel Capacity | 66.1 gal |
| Water Spray Tank Fluid Capacity | 105.7 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | TCD 2012 L04 |
|---|---|
| Gross Power | 134.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Make | Deutz |
Weights
| Operating Weight - standard | 29,762 lb |
|---|---|
| Operating Weight - max ballast | 59,525 lb |
| Average Weight per Wheel - Max Ballast | 7,441 lb |
Dimensions
| Wheelbase | 146 in |
|---|---|
| Overall Length | 16 in |
| Overall Width | 84 in |
| Height - Top of ROPS/FOPS | 122 in |
| Turning Radius - Inside | 210 in |
Tires & Wheels
| Number of Tires - Rear | 4 |
|---|---|
| Number of Tires - Front | 4 |
| Wheel Track/Tire Overlap | 2 in |
| Standard Tire Size | 11.00-20-18PR |
| Oscillation Angle | 4 ° |
