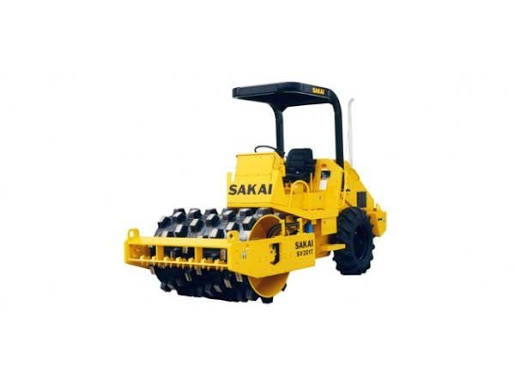

Sakai
SV201T
Padfoot Compactor
25 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 7,120 lb |
|---|---|
| Max Speed | 5.6 mph |
| Fuel Capacity | 15.9 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | D2011 L03i |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 50.0 hp |
| Number of Cylinders | 3 |
| Make | Deutz |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 6 in |
| Overall Width | 56 in |
| Turning Radius - Inside | 89 in |
| Overall Length w/o Blade | 132 in |
| Overall Length w/ Blade | 154 in |
Tires & Wheels
| Tires | 9.5-24/6PR |
|---|
Drum
| Drum Width | 47 in |
|---|---|
| Vibration Frequency 1 | 41 vpm |
| Centrifugal Force - High | 18,547 lb |
| Drum Diameter | 35 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 2 in |
| Number of Pads | 70 |
| Pad Surface Area | 13 in³ |
| Frequency | 41 vpm |
Blades
| Blade Width | 60 in |
|---|
