Sakai

SV201T

Padfoot Compactor

Operating Weight
9,811 lb
Max Speed
4.7 mph
Drum Width
54 in
Gross Power
60.4 hp
All padfoot compactors

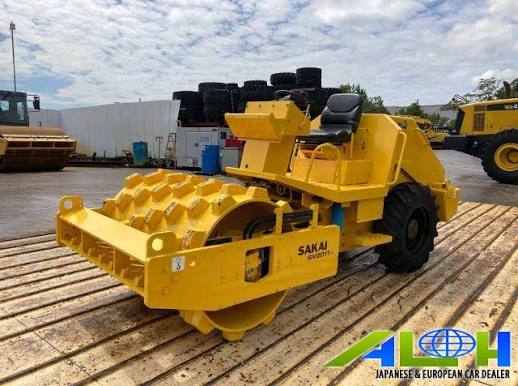

Sakai SV201T Padfoot Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,811 lb
Max Speed4.7 mph
Fuel Capacity26.5 gal
Operating Width54 in
Hydraulic System Fluid Capacity10.1 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB3.3-C
Displacement199 in³
Power Measured @2,200 rpm
Gross Power60.4 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab102 in
Wheelbase8 in
Overall Width54 in
Width Over Tires54 in
Overall Length w/o Blade167 in

Tires & Wheels

Tires & Wheels specifications
Tires11.2-20-6PR

Drum

Drum specifications
Drum Width54 in
Vibration Frequency 130 vpm
Drum Diameter41 in
Pad Height3 in
Number of Pads80
Centrifugal Force - Low16,186 lb
Vibration Frequency1,800 vpm
Frequency30 vpm
