Dynapac

CA144PD

Padfoot Compactor

Operating Weight
11,023 lb
Max Speed
3.8 mph
Drum Width
66 in
Gross Power
84.0 hp
All padfoot compactors

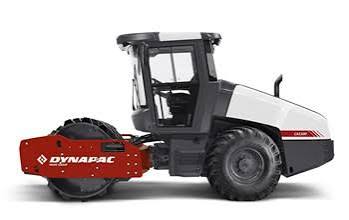

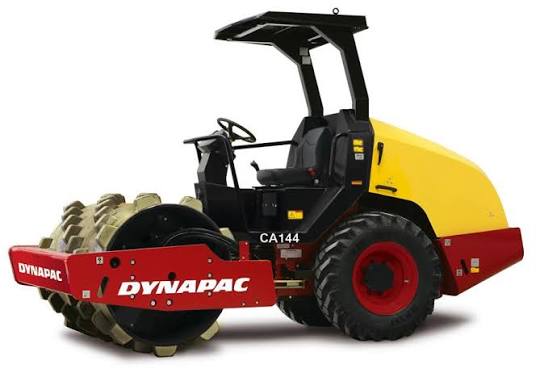

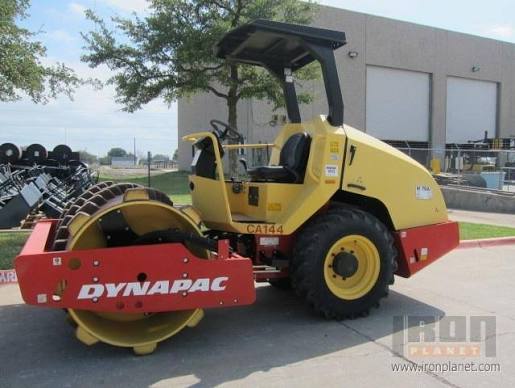

Dynapac CA144PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,023 lb
Max Speed3.8 mph
Fuel Capacity31.0 gal

Engine

Engine specifications
Engine Model5030 TF270
Displacement165 in³
Power Measured @2,800 rpm
Gross Power84.0 hp
Aspirationwater cooled turbo diesel with after cooler
MakeJohn Deere

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab100 in
Overall Width66 in
Width Over Tires55 in
Turning Radius - Inside7 in
Overall Length w/o Blade156 in
Overall Length w/ Blade167 in

Tires & Wheels

Tires & Wheels specifications
Tires12.5-20

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 135 vpm
Centrifugal Force - High20,008 lb
Drum Diameter39 in
Nominal Amplitude - High0 in
Pad Height3 in
Number of Pads72
Pad Surface Area13 in³
Frequency35 vpm

Blades

Blades specifications
Blade Width73 in
