Dynapac

CA1400PD

Padfoot Compactor

Operating Weight
15,200 lb
Max Speed
6.2 mph
Drum Width
66 in
Gross Power
75.0 hp
All padfoot compactors

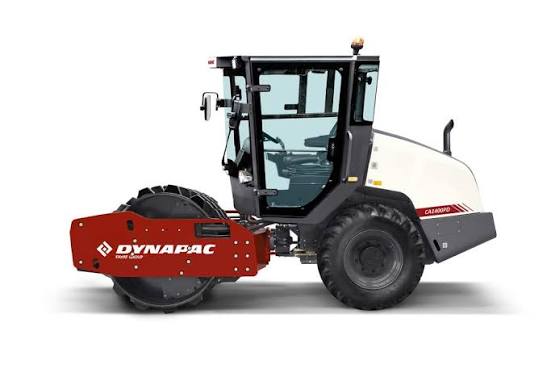

Dynapac CA1400PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,200 lb
Operating weight ROPS14,350 lb
Max Speed6.2 mph
Fuel Capacity31.0 gal
Tire Size400/60-22.5 flotation

Engine

Engine specifications
Engine ModelV 3307 CR-TE4
Power Measured @2,200 rpm
Gross Power75.0 hp
Engine MakeKubota
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase87 in
Overall Length15 in
Overall Width54 in
Height - Top of ROPS/FOPS108 in
Turning Radius - Inside114 in
Gradeability50.0 %
Turning Radius - Outside180 in
Curb clearance14 in
Overhang Front5 in
Overhang Rear5 in

Drum

Drum specifications
Drum Width66 in
Centrifugal Force - High25,600 lb
Drum Diameter48 in
Pad Height3 in
Centrifugal Force - Low12,400 lb
Pad Surface Area13 in³
Drum thickness1 in
