Dynapac

CA150PD

Padfoot Compactor

Gross Power
80.5 hp
All padfoot compactors

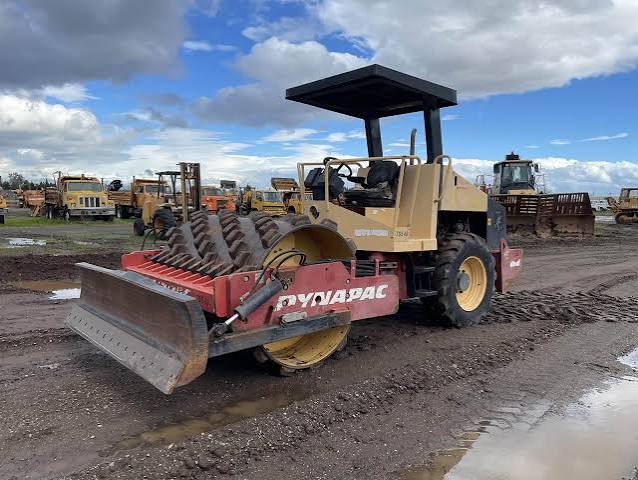

Dynapac CA150PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS16,535 lb
Fuel Capacity225.0 gal
Operating Width66 in
Tire Size149x24

Engine

Engine specifications
Power Measured @2,200 rpm
Gross Power80.5 hp
Number of Cylinders4
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase100 in
Overall Length192 in
Overall Width54 in
Width Over Tires73 in
Height - Top of ROPS/FOPS114 in
Gradeability55.0 %
Height114 in
Overall Length w/o Blade192 in
Curb clearance17 in
Overhang Front4 in
Overhang Rear4 in

Drum

Drum specifications
Vibration Frequency 131 vpm
Centrifugal Force - High32,148 lb
Drum Diameter48 in
Nominal Amplitude - High0 in
Number of Pads132
Centrifugal Force - Low30,574 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 243 vpm
Vibration Frequency31 – 43 vpm
Drum thickness1 in
Frequency31 – 43 vpm
