Dynapac
CA150PD
Padfoot Compactor
32 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 16,755 lb |
|---|---|
| Max Speed | 6.9 mph |
| Fuel Capacity | 60.8 gal |
| Operating Width | 74 in |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 2.2 gal |
| Alternator Supplied Amperage | 60 A |
| Cooling System Fluid Capacity | 3.7 gal |

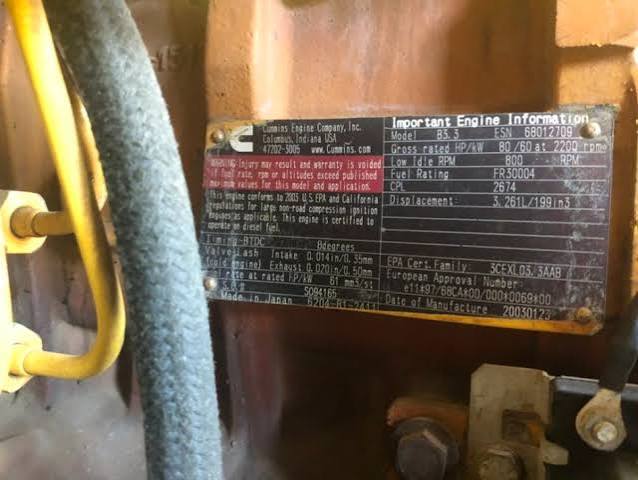

Engine
| Engine Model | B 3.3 |
|---|---|
| Displacement | 199 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 80.5 hp |
| Aspiration | turbocharged |
| Make | Cummins |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 113 in |
| Wheelbase | 8 in |
| Overall Length | 16 in |
| Turning Radius - Inside | 117 in |
| Overall Length w/o Blade | 193 in |
Drum
| Drum Width | 69 in |
|---|---|
| Vibration Frequency 1 | 29 vpm |
| Centrifugal Force - High | 21,582 lb |
| Nominal Amplitude - High | 0 in |
| Pad Height | 3 in |
| Number of Pads | 100 |
| Vibratory Frequency 2 | 36 vpm |
| Vibration Frequency | — |
| Vibration Frequency 2 | 36 vpm |
| Nominal Amplitude - Med | 0 in |
