Hyster
Caterpillar
GC70K
Forklift
27 specifications
1 / 5

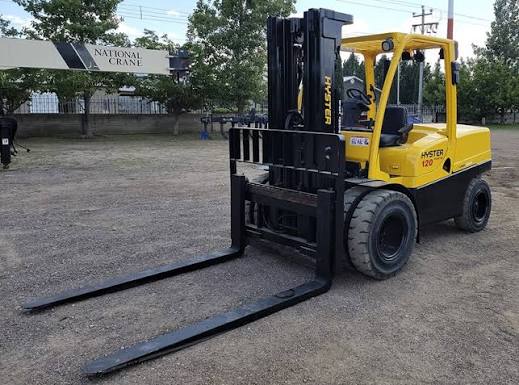

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 28,519 lb |
|---|---|
| Max Speed | 11.7 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Pneumatic |
| Drawbar Pull | 6,255 lb |
| Hydraulic System Relief Valve Pressure | 2,250 psi |
| Front Tire Size | 300 x 15 - 20 Ply |
| Rear Tire Size | 7.00 x 12 - 14 Ply |
| Axle load - front | 6,584 lb |
| Axle load - rear | 9,935 lb |
| Hydraulic Tank | 17.9 gal |
Engine
| Engine Model | 3.8L Dual Fuel |
|---|---|
| Displacement | 230 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Kubota |
| Power | 78.0 hp |
| Fuel Type | Gasoline |
| Torque | 189 lb-ft |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Wheelbase | 83 in |
| Overall Width | 57 in |
| Turning Radius | 115 in |
| Overall Height - mast lowered | 88 in |
| Length to Fork Face | 132 in |
| Gradeability | 23.0 % |
| Height to Top of Overhead Guard | 80 in |
| Right Angle Stack | 138 in |
Brakes & Steering
| Service brake | Foot/Hydraulic |
|---|---|
| Parking brake | Hand/Mechanical |
Mast
| Load Capacity | 5,443 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.1 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 1.1 mph |
| Max Fork Spread | 50 in |
