Hyster

H175FT

Forklift

All forklifts

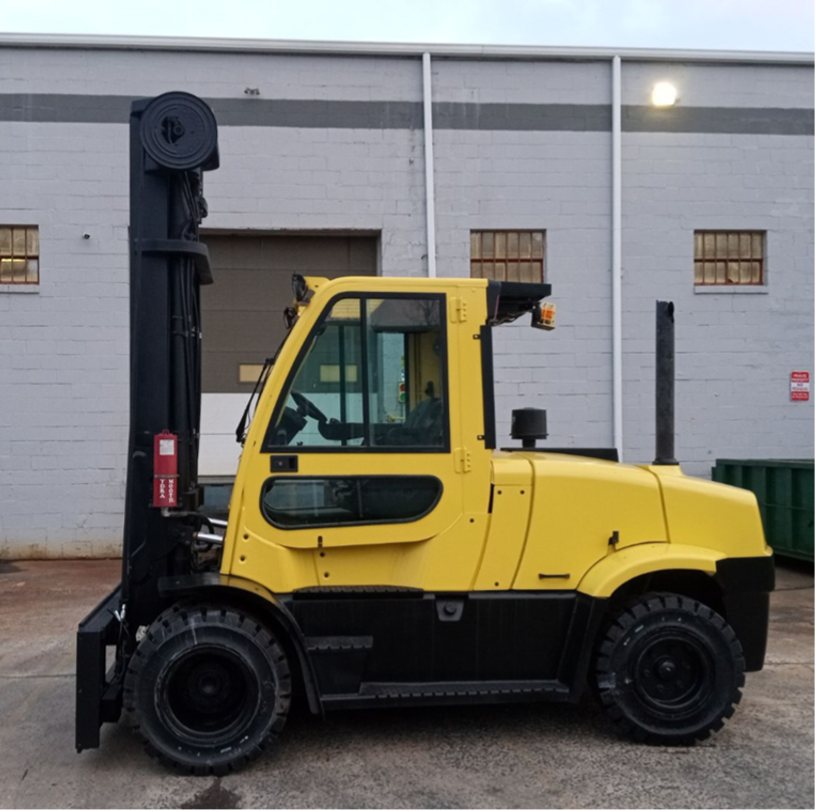

Hyster H175FT Forklift
1 / 5
Image 1 of 5
Image: easternlifttruck.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,782 lb
Max Speed13.1 mph
Number of Front Wheels4
Number of Rear Wheels2
Tire TypePneumatic
Drawbar Pull12,000 lb
Fuel Capacity19.7 gal
Front Tire Size8.25 X 15 14PR
Rear Tire Size8.25 X 15 14PR
Axle load - front11,367 lb
Axle load - rear15,415 lb
Hydraulic Tank19.0 gal

Engine

Engine specifications
Displacement230 in³
Power Measured @2,200 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Engine MakeKubota
Power74.0 hp
Fuel TypeDiesel
Torque227 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase97 in
Overall Width89 in
Turning Radius150 in
Overall Height - mast lowered156 in
Length to Fork Face159 in
Gradeability29.0 %
Height to Top of Overhead Guard101 in
Right Angle Stack174 in
Track width rear61 in
Track width front79 in

Brakes & Steering

Brakes & Steering specifications
Service brakeFoot/Hydraulic
Parking brakeHand/Mechanical

Mast

Mast specifications
Load Capacity17,637 lb
Load Center24 in
Lift Speed0.8 mph
Mast Tip Forward5 °
Mast Tip Rear9 °
Lower Speed0.8 mph
