FB15M-3
Forklift
22 specifications
1 / 5

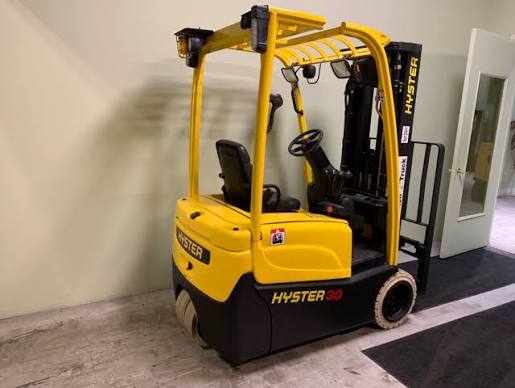

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 5,139 lb |
|---|---|
| Max Speed | 10.0 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Pneumatic Shaped Solid |
| Drawbar Pull | 2,719 lb |
| Front Tire Size | 18 x 7-8 |
| Rear Tire Size | 15 x 4.5-8 |
| Axle load - front | 3,555 lb |
| Axle load - rear | 3,764 lb |
Engine
| Engine Model | J30XNT |
|---|---|
| Engine Make | Hyster |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 52 in |
| Overall Width | 42 in |
| Turning Radius | 59 in |
| Overall Height - mast lowered | 78 in |
| Length to Fork Face | 72 in |
| Gradeability | 4.4 % |
| Height to Top of Overhead Guard | 81 in |
| Right Angle Stack | 122 in |
| Rear Tread Range | 8 in |
| Front Tread Range | 35 in |
Mast
| Load Capacity | 3,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.5 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 5 ° |
| Lower Speed | 1.1 mph |
