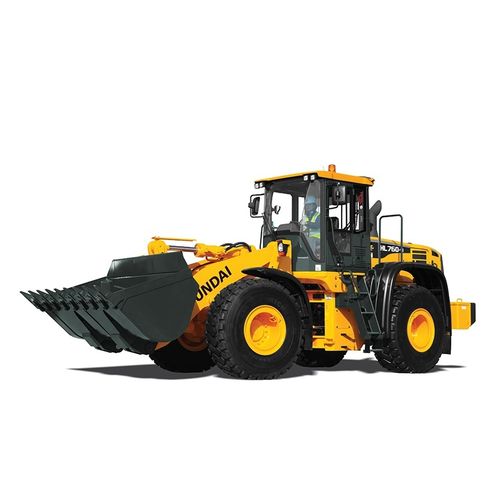

Hyundai
HL760-7
- Operating Weight
- 40,786 lb
- Bucket Capacity - heaped
- 4.20 yd³
- Gross Power
- 215.0 hp
- Net Power
- 205.2 hp
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 40,786 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
| Tire Size | 23.5-25 L5 |
| Static Tipping Weight | 30,512 lb |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | QSB5.9-C |
|---|---|
| Gross Power | 215.0 hp |
| Net Power | 205.2 hp |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 15 in |
| Wheelbase | 131 in |
| Reach at Max Lift and Dump | 69 in |
| Length with Bucket on Ground | 318 in |
Transmission
| Transmission Type | full automatic powershift torque converter |
|---|
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 35,857 lb |
| Bucket Width | 115 in |
