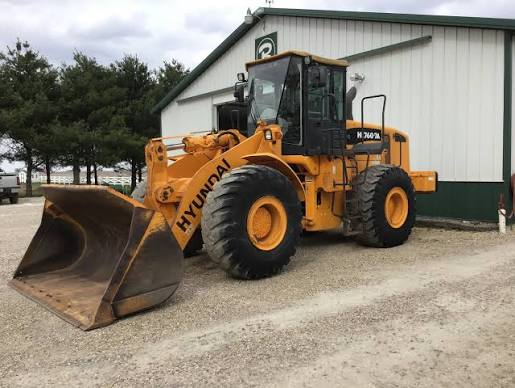

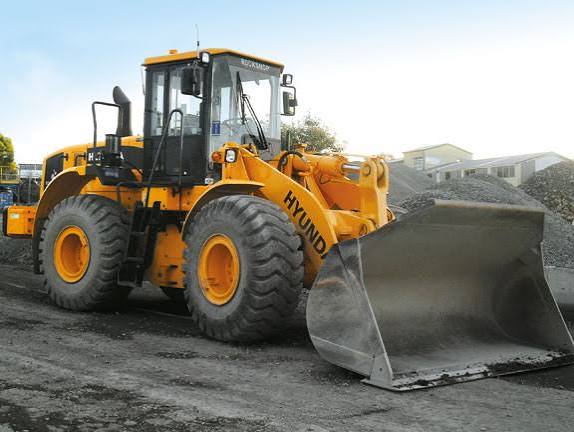

Hyundai
HL760-7A
- Operating Weight
- 39,463 lb
- Bucket Capacity - heaped
- 4.09 yd³
- Gross Power
- 215.0 hp
- Net Power
- 205.0 hp
1 / 5
Image 1 of 5
Specifications
52 data points
Operating Specifications
| Operating Weight | 39,463 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
| Tire Size | 23.5-25 20 PR L3 |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 10.1 gal |
| Rear Axle/Diff Fluid Capacity | 8.2 gal |
| Cooling System Fluid Capacity | 10.4 gal |
| Transmission Fluid Capacity | 8.5 gal |
| Rated Bucket Capacity | 4.00 yd³ |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 215.0 hp |
| Net Power | 205.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Engine Make | CUMMINS |
| Make | Cummins |
| Bore | 4 in |
| Stroke | 5 in |
| Torque | 700 lb-ft |
| Air cleaner | Dry dual elements |
| Emissions Certification | Low emission |
| Starter | 5.0 hp |
Weights
| Operating Weight | 39,460 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 74.0 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.0 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | Open-centered tandem circuit system |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 131 in |
| Width Over Tires | 115 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 318 in |
| Hinge Pin - Max Height | 165 in |
Transmission
| Max Speed - Forward | 21.3 mph |
|---|---|
| Max Speed - Reverse | 23.3 mph |
| Transmission Type | Full automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Brakes & Steering
| Service brake | Hydraulically actuated wet disc brakes actuate all 4 wheels |
|---|---|
| Parking brake | Spring-applied hydraulically released disc brake on transmission |
Bucket
| Bucket Capacity - heaped | 4.09 yd³ |
|---|---|
| Bucket Capacity - struck | 3.60 yd³ |
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 6,858,921 lb |
