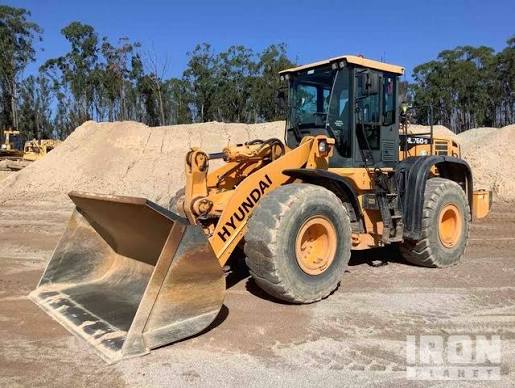

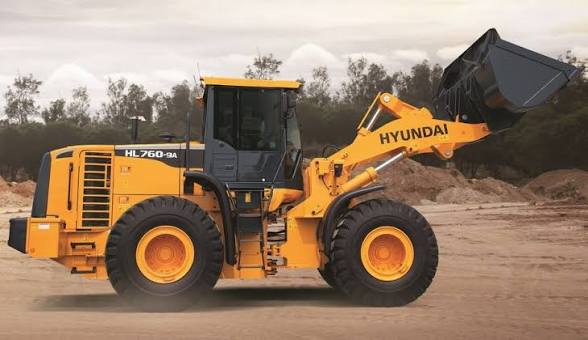

Hyundai
HL760-9
- Operating Weight
- 39,463 lb
- Bucket Capacity - heaped
- 4.39 yd³
- Gross Power
- 215.0 hp
- Net Power
- 212.0 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 39,463 lb |
|---|---|
| Fuel Capacity | 88.3 gal |
| Tire Size | 23.5-25 |
| Hydraulic System Fluid Capacity | 66.6 gal |
| Static Tipping Weight | 30,512 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 4.8 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 10.1 gal |
| Rear Axle/Diff Fluid Capacity | 8.2 gal |
| Cooling System Fluid Capacity | 10.4 gal |
| Transmission Fluid Capacity | 8.5 gal |
| Rated Bucket Capacity | 4.30 yd³ |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 215.0 hp |
| Net Power | 212.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Make | Cummins |
Weights
| Operating Weight | 39,460 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 61.6 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.1 s |
| Dump Time | 1.2 s |
| Pump Type | Variable Axial Piston |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 131 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 49 in |
| Length with Bucket on Ground | 319 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 15.7 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.39 yd³ |
|---|---|
| Bucket Capacity - struck | 3.70 yd³ |
| Dump Clearance at Max Raise | 118 in |
| Bucket Width | 115 in |
General Specifications
| Operating Weight lbs (kg) | 39,460 (17 900) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity cu. yd. (cu m) | 4.3 (3.3) — Starting 2016 Model Year |
| Engine type | Cummins QSB6.7 — Starting 2016 Model Year |
| Max Dump Height ft.( m) | 9.9 (3.0) — Starting 2016 Model Year |
| Engine Power HP (KW) | 212 (158.1) — Starting 2016 Model Year |
