Hyundai

HL760XTD-9

Wheel Loader

Operating Weight
41,227 lb
Bucket Capacity - heaped
4.39 yd³
Gross Power
215.0 hp
Net Power
212.0 hp
All wheel loaders

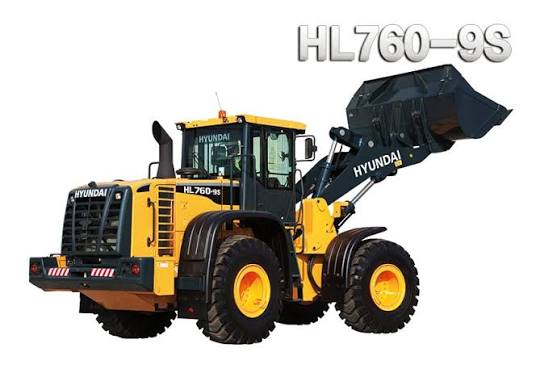

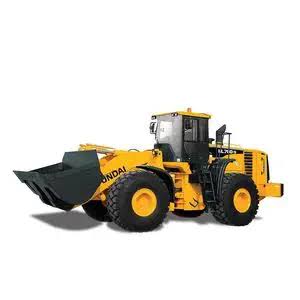

Hyundai HL760XTD-9 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,227 lb
Fuel Capacity88.3 gal
Tire Size23.5-25
Hydraulic System Fluid Capacity66.6 gal
Static Tipping Weight26,896 lb
Operating Voltage24 V
Engine Oil Fluid Capacity4.8 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity10.1 gal
Rear Axle/Diff Fluid Capacity8.2 gal
Cooling System Fluid Capacity10.4 gal
Transmission Fluid Capacity8.5 gal

Engine

Engine specifications
Engine ModelQSB6.7
Power Measured @2,100 rpm
Gross Power215.0 hp
Net Power212.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity61.6 gal/min
Raise Time5.8 s
Lower Time3.1 s
Dump Time1.2 s
Pump TypeVariable Axial Piston

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab137 in
Wheelbase131 in
Width Over Tires109 in
Reach at Max Lift and Dump49 in
Length with Bucket on Ground342 in
Hinge Pin - Max Height181 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse15.7 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped4.39 yd³
Bucket Capacity - struck3.70 yd³
Dump Clearance at Max Raise137 in
Bucket Width115 in
