Hyundai

HL770-7

Wheel Loader

Operating Weight
50,265 lb
Bucket Capacity - heaped
5.30 yd³
Gross Power
280.0 hp
Net Power
266.0 hp
All wheel loaders

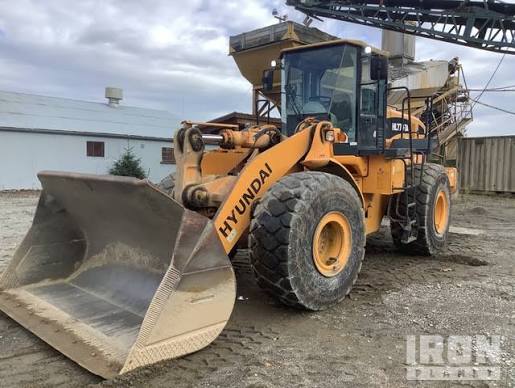

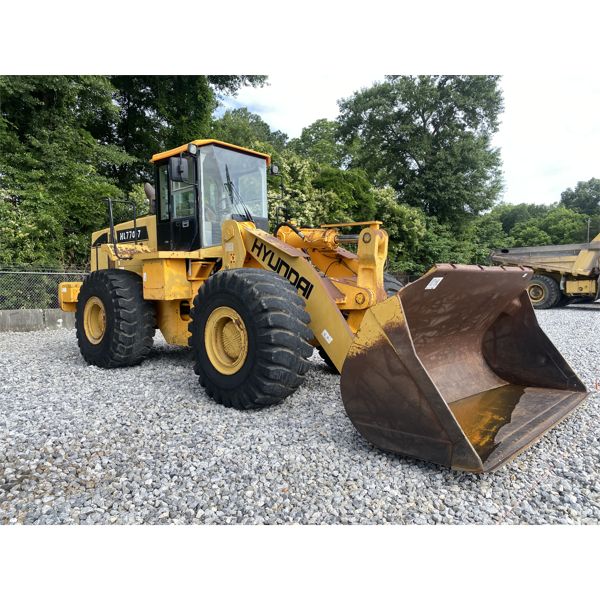

Hyundai HL770-7 Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,265 lb
Fuel Capacity113.6 gal
Tire Size26.5-25 20 PR L3
Hydraulic System Fluid Capacity84.6 gal
Static Tipping Weight37,700 lb
Operating Voltage24 V
Engine Oil Fluid Capacity5.3 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity20.7 gal
Rear Axle/Diff Fluid Capacity14.1 gal
Cooling System Fluid Capacity14.8 gal
Transmission Fluid Capacity13.8 gal

Engine

Engine specifications
Engine ModelQSC8.3-C
Displacement507 in³
Power Measured @2,200 rpm
Gross Power280.0 hp
Net Power266.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity108.6 gal/min
Raise Time5.7 s
Lower Time2.8 s
Dump Time1.4 s
Relief Valve Setting2,990 psi
Pump Typeopen-centered tandem circuit system

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab141 in
Wheelbase135 in
Width Over Tires118 in
Reach at Max Lift and Dump50 in
Length with Bucket on Ground341 in
Hinge Pin - Max Height170 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse16.4 mph
Transmission Type3-elements single-stage single-phase
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.30 yd³
Bucket Capacity - struck4.60 yd³
Dump Clearance at Max Raise126 in
Breakout Force45,770 lb
Bucket Width122 in
