Hyundai

HL770-7A

Wheel Loader

Operating Weight
50,927 lb
Bucket Capacity - heaped
5.30 yd³
Gross Power
280.0 hp
Net Power
266.0 hp
All wheel loaders

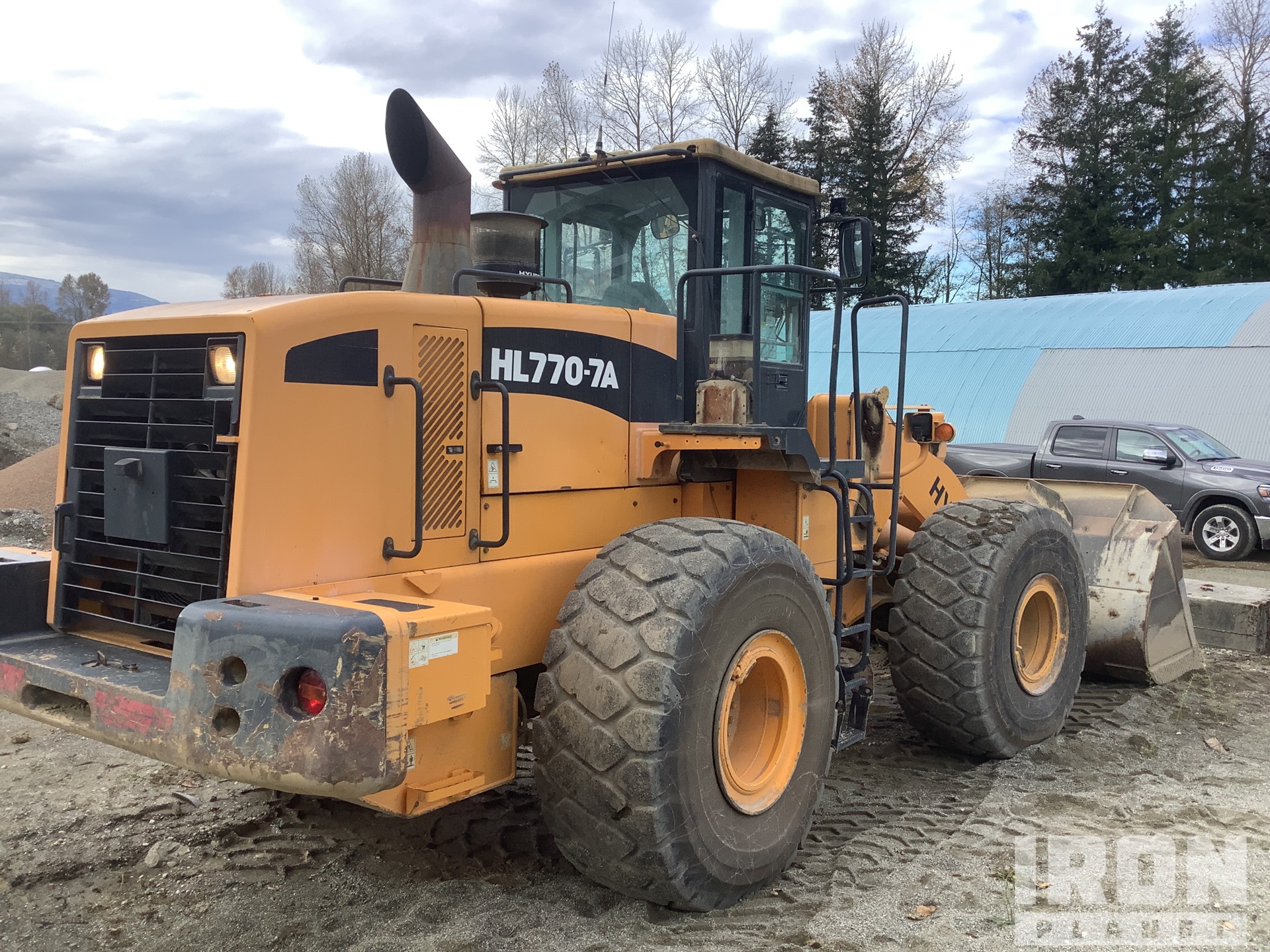

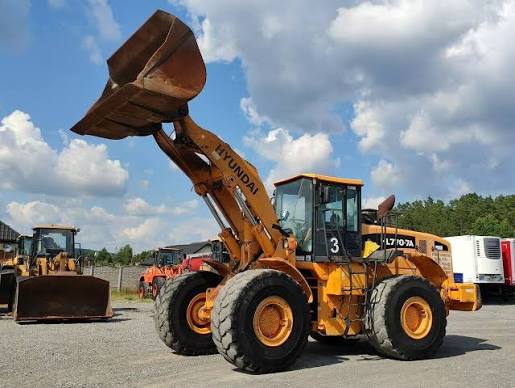

Hyundai HL770-7A Wheel Loader
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,927 lb
Fuel Capacity113.6 gal
Tire Size26.5-25 20 PR L3
Hydraulic System Fluid Capacity84.6 gal
Operating Voltage24 V
Rear Axle Oscillation26 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity13.5 gal
Rear Axle/Diff Fluid Capacity11.4 gal
Cooling System Fluid Capacity14.8 gal
Transmission Fluid Capacity13.8 gal
Rated Bucket Capacity5.21 yd³

Engine

Engine specifications
Engine ModelQSL
Displacement543 in³
Power Measured @2,000 rpm
Gross Power280.0 hp
Net Power266.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Engine MakeCUMMINS
MakeCummins
Stroke6 in
Bore5 in
Engine TypeWater cooled
Air cleanerDry dual elements
Emissions CertificationTier 3-A
Max torque ISO TR143961,070 lb-ft

Weights

Weights specifications
Operating Weight50,930 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity112.3 gal/min
Raise Time5.5 s
Lower Time2.8 s
Dump Time1.3 s
Relief Valve Setting2,900 psi
Pump TypeVane type

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab141 in
Wheelbase135 in
Length with Bucket on Ground341 in
Hinge Pin - Max Height76 in

Transmission

Transmission specifications
Max Speed - Forward24.2 mph
Max Speed - Reverse27.0 mph
Transmission TypeFull automatic power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.30 yd³
Bucket Capacity - struck4.60 yd³
Dump Clearance at Max Raise124 in
Breakout Force50,926 lb
Bucket Width122 in
Digging depth5 in
