Hyundai

HL770-9

Wheel Loader

Operating Weight
50,927 lb
Bucket Capacity - heaped
5.49 yd³
Gross Power
280.0 hp
Net Power
277.0 hp
All wheel loaders

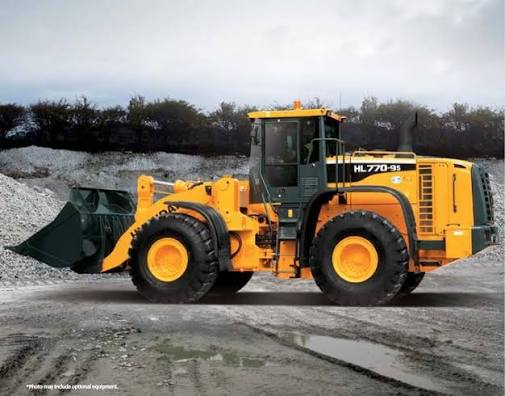

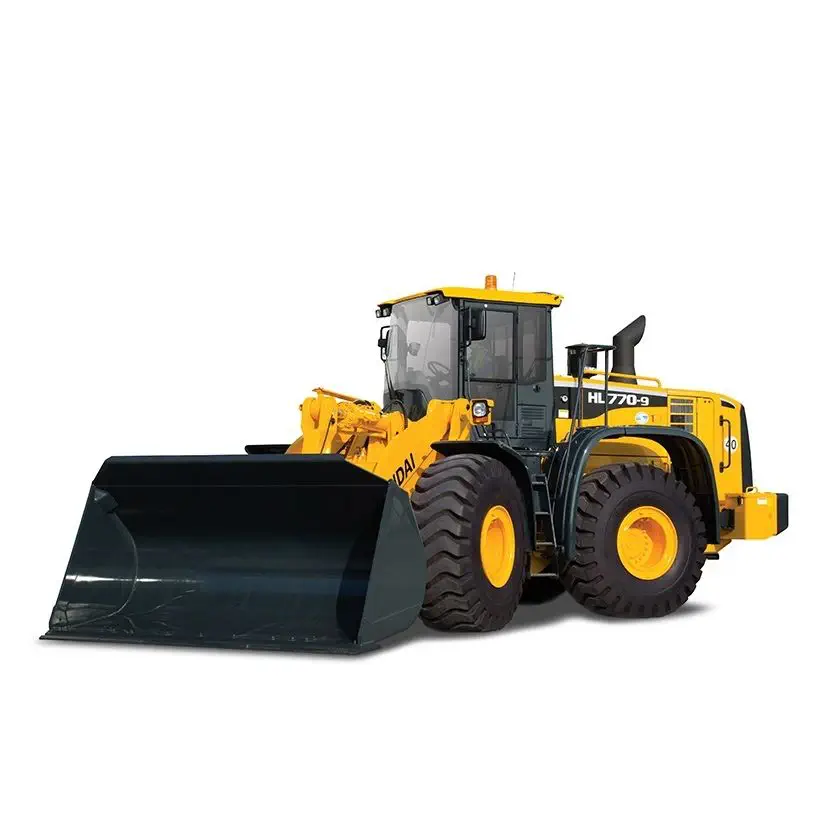

Hyundai HL770-9 Wheel Loader
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,927 lb
Fuel Capacity120.8 gal
Tire Size26.5-25
Hydraulic System Fluid Capacity77.2 gal
Static Tipping Weight38,845 lb
Operating Voltage24 V
Engine Oil Fluid Capacity6.1 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity13.5 gal
Rear Axle/Diff Fluid Capacity11.4 gal
Cooling System Fluid Capacity14.8 gal
Transmission Fluid Capacity11.4 gal
Rated Bucket Capacity5.49 yd³

Engine

Engine specifications
Engine ModelQSL
Power Measured @2,000 rpm
Gross Power280.0 hp
Net Power277.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
MakeCummins

Weights

Weights specifications
Operating Weight50,930 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity90.4 gal/min
Raise Time5.4 s
Lower Time2.8 s
Dump Time1.3 s
Pump TypeVariable Axial Piston

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab141 in
Wheelbase138 in
Width Over Tires118 in
Reach at Max Lift and Dump52 in
Length with Bucket on Ground343 in
Hinge Pin - Max Height170 in

Transmission

Transmission specifications
Max Speed - Forward25.5 mph
Max Speed - Reverse16.8 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.49 yd³
Bucket Capacity - struck4.80 yd³
Dump Clearance at Max Raise122 in
Bucket Width122 in

General Specifications

General Specifications specifications
Operating Weight lbs (kg)50,930 (23 100) — Starting 2016 Model Year
Bucket Capacity cu. yd. (cu m)5.5 (4.2) — Starting 2016 Model Year
Engine typeCummins QSL — Starting 2016 Model Year
Max Dump Height ft.( m)10.2 (3.1) — Starting 2016 Model Year
Engine Power HP (KW)277 (206.6) — Starting 2016 Model Year
