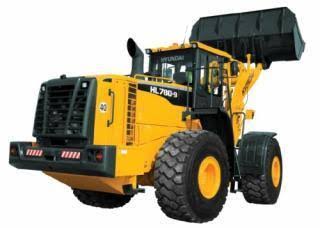

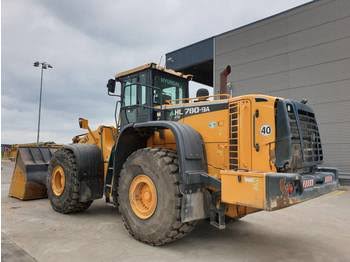

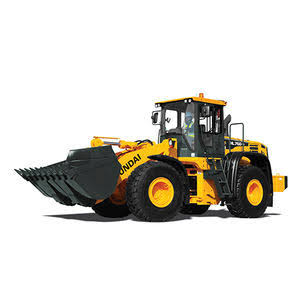

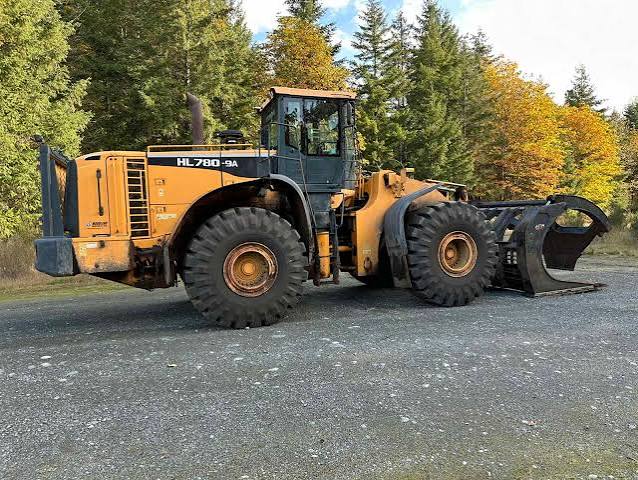

Hyundai
HL780XTD-9
- Operating Weight
- 67,902 lb
- Bucket Capacity - heaped
- 7.10 yd³
- Gross Power
- 348.0 hp
- Net Power
- 344.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 67,902 lb |
|---|---|
| Fuel Capacity | 118.9 gal |
| Tire Size | 29.5-25 |
| Hydraulic System Fluid Capacity | 61.9 gal |
| Static Tipping Weight | 47,399 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 10.1 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 15.4 gal |
| Rear Axle/Diff Fluid Capacity | 15.4 gal |
| Cooling System Fluid Capacity | 17.2 gal |
| Transmission Fluid Capacity | 11.4 gal |
Engine
| Engine Model | QSM11 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 348.0 hp |
| Net Power | 344.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 111.0 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 4.1 s |
| Dump Time | 1.4 s |
| Pump Type | Variable Axial Piston |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 152 in |
| Wheelbase | 146 in |
| Width Over Tires | 127 in |
| Reach at Max Lift and Dump | 59 in |
| Length with Bucket on Ground | 397 in |
| Hinge Pin - Max Height | 194 in |
Transmission
| Max Speed - Forward | 22.7 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 7.10 yd³ |
|---|---|
| Bucket Capacity - struck | 6.10 yd³ |
| Dump Clearance at Max Raise | 145 in |
| Bucket Width | 137 in |
