Hyundai

HSL800T

Skid Steer Loader

Operating Weight
7,000 lb
Max Speed
7.8 mph
All skid steer loaders

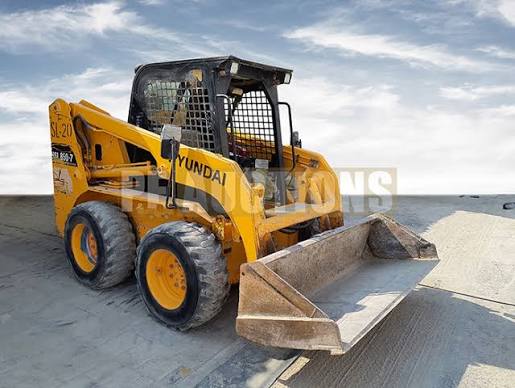

Hyundai HSL800T Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura.press

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,000 lb
Max Speed7.8 mph
Fuel Capacity19.3 gal
Hydraulic System Fluid Capacity14.8 gal
Tire Size12.00X16.5

Engine

Engine specifications
Engine ModelV2003T
Power Measured @2,800 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.6 gal/min
Relief Valve Pressure2,400 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab84 in
Wheelbase40 in
Width Over Tires69 in
Reach at Max Lift and Dump30 in
Length with Bucket141 in
Clearance at Max Lift and Dump111 in
Turning Radius from Center - inc bucket83 in
Turning Radius from Center - machine rear66 in
Length w/o Bucket110 in

Loader

Loader specifications
Operating Load Rating1,750 lb
Tipping Angle3,497 °
