Hyundai
Liugong
936E
Excavator
Specifications pending
1 / 5

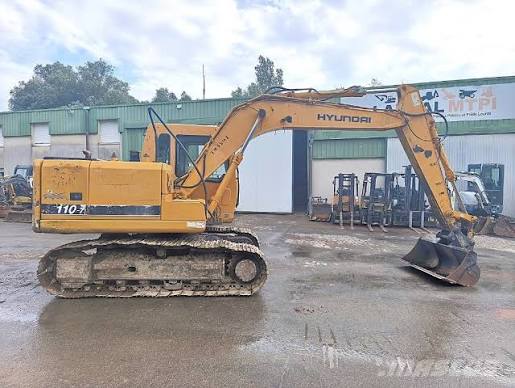

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Fuel Capacity | 66.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 59.2 gal/min |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 4.7 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | S4K-T |
|---|---|
| Displacement | 259 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 94.0 hp |
| Net Power | 84.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 274 lb-ft |
| Make | Mitsubishi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 110 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 41 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 24,250 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Reach Along Ground | 289 in |
| Max Loading Height | 219 in |
| Max Vertical Wall Digging Depth | 161 in |
| Max Cutting Height | 312 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 101 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 200 in |
|---|---|
| Max Vertical Wall Digging Depth | 175 in |
| Max Cutting Height | 318 in |
| Max Loading Height | 226 in |
| Max Reach Along Ground | 300 in |
| Shipping Length of Unit | 301 in |
| Shipping Height of Unit | 108 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 222 in |
|---|---|
| Max Cutting Height | 333 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 196 in |
| Max Reach Along Ground | 322 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 121 in |
