Hyundai

ROBEX 140LCD-7

Excavator

Max Digging Depth
198 in
Max Digging Depth
205 in
Net Power
105.0 hp
All excavators

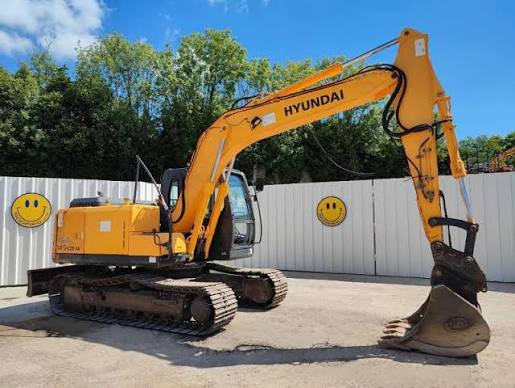

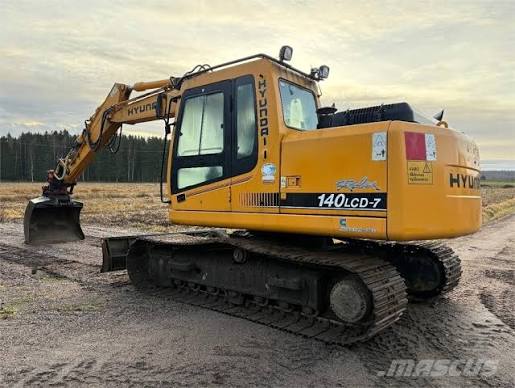

Hyundai ROBEX 140LCD-7 Excavator
1 / 5
Image 1 of 5
Image: werktuigen.com

Specifications

77 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Fluid Capacity55.5 gal
Hydraulic System Relief Valve Pressure4,690 psi
Engine Oil Capacity4.1 gal
Cooling System Fluid Capacity6.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.7 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB3.9-C
Displacement238 in³
Power Measured @2,100 rpm
Gross Power1,150,017.2 hp
Net Power105.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque330 lb-ft

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab111 in
Length of Track on Ground119 in
Tail Swing Radius91 in
Width to Outside of Tracks103 in
Removal Counterweight Clearance37 in
Digging Depth216 in
Digging Reach216 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side1
Drawbar Pull29,320 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth198 in
Max Reach Along Ground300 in
Max Loading Height222 in
Max Vertical Wall Digging Depth176 in
Max Cutting Height318 in
Shipping Length of Unit324 in
Shipping Height of Unit104 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth205 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height322 in
Max Loading Height226 in
Max Reach Along Ground307 in
Shipping Length of Unit325 in
Shipping Height of Unit109 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth221 in
Max Cutting Height336 in
Max Loading Height240 in
Max Vertical Wall Digging Depth202 in
Max Reach Along Ground324 in
Shipping Length of Unit324 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth241 in
Max Cutting Height344 in
Max Reach Along Ground342 in
Max Loading Height248 in
Max Vertical Wall Dig Depth223 in
Shipping Length of Unit322 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth180 in
Max Reach Along Ground280 in
Max Cutting Height302 in
Max Loading Height206 in
Max Vertical Wall Dig Depth162 in
Shipping Height of Unit106 in
Shipping Length of Unit305 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth189 in
Max Reach Along Ground287 in
Max Cutting Height305 in
Max Loading Height209 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit305 in
Shipping Height of Unit111 in
