Hyundai

ROBEX 210LC-9

Excavator

Max Digging Depth
246 in
Net Power
143.0 hp
All excavators

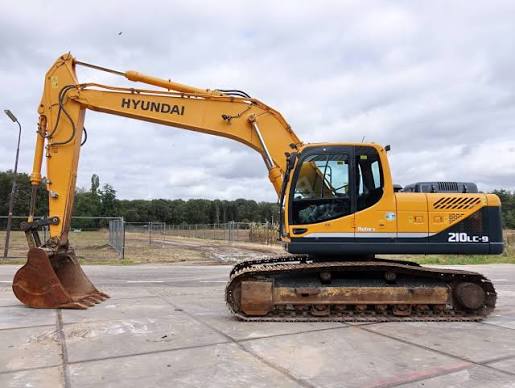

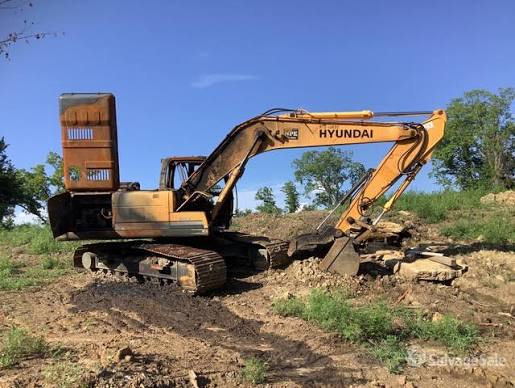

Hyundai ROBEX 210LC-9 Excavator
1 / 5
Image 1 of 5
Image: inconst-models.com

Specifications

66 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity117.3 gal/min
Hydraulic System Fluid Capacity76.7 gal
Hydraulic System Relief Valve Pressure4,978 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @1,900 rpm
Gross Power151.0 hp
Net Power143.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque460 lb-ft
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground144 in
Tail Swing Radius111 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size28 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height250 in
Max Vertical Wall Digging Depth209 in
Max Cutting Height360 in
Shipping Length of Unit380 in
Shipping Height of Unit126 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth226 in
Max Cutting Height369 in
Max Loading Height257 in
Max Reach Along Ground369 in
Shipping Length of Unit377 in
Shipping Height of Unit124 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth265 in
Max Cutting Height378 in
Max Loading Height268 in
Max Vertical Wall Digging Depth248 in
Max Reach Along Ground388 in
Shipping Length of Unit376 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth305 in
Max Cutting Height398 in
Max Reach Along Ground425 in
Max Loading Height288 in
Max Vertical Wall Dig Depth285 in
Shipping Length of Unit376 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth463 in
Max Reach Along Ground596 in
Max Cutting Height494 in
Max Loading Height406 in
Max Vertical Wall Dig Depth379 in
Shipping Height of Unit130 in
Shipping Length of Unit474 in
