Hyundai
Liugong
936E
Excavator
Specifications pending
1 / 5

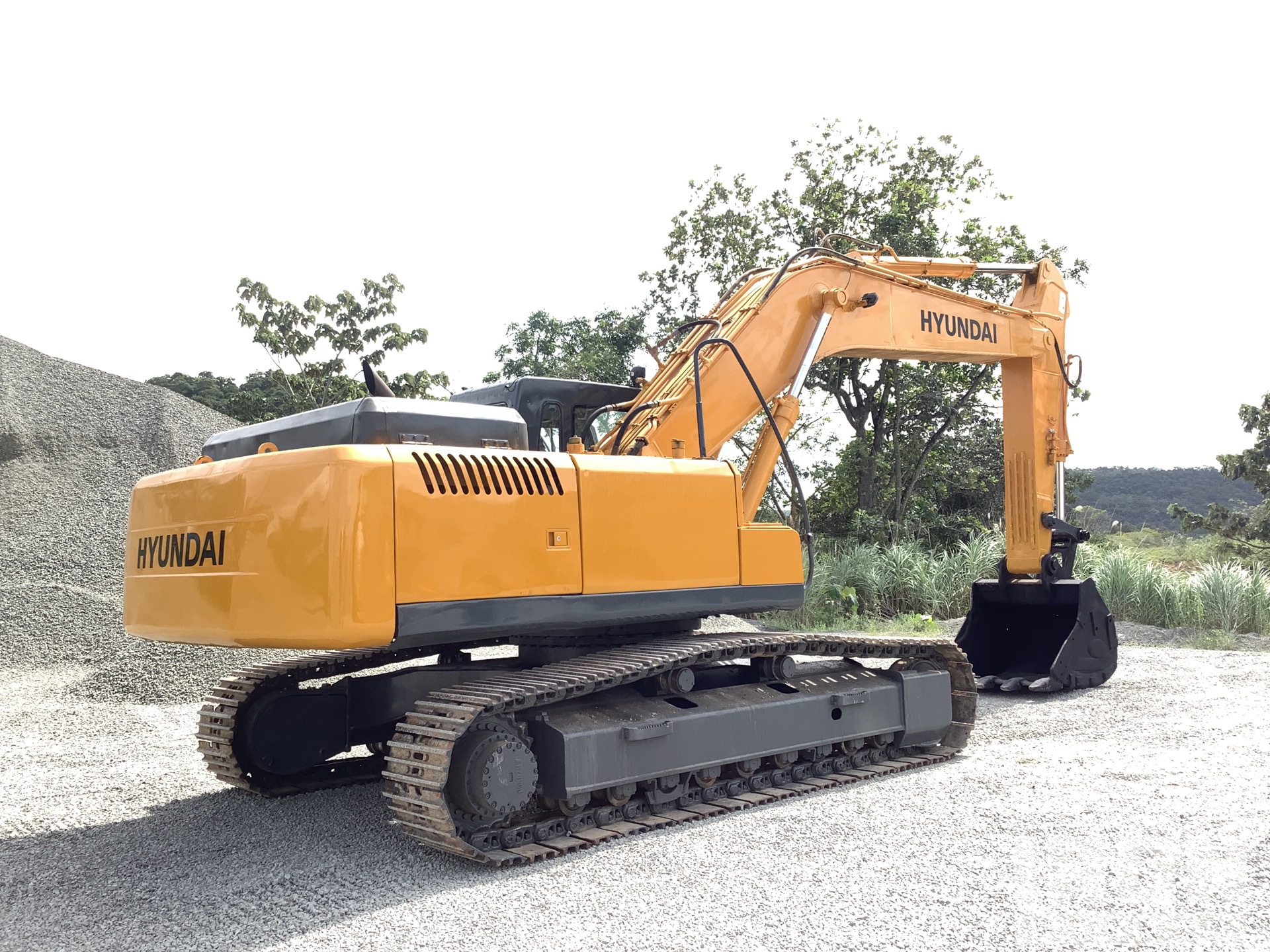

Image 1 of 5
Specifications
70 data points
Operating Specifications
| Fuel Capacity | 126.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 137.4 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 6.8 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | C8.3-C |
|---|---|
| Displacement | 506 in³ |
| Power Measured @ | 1,750 rpm |
| Gross Power | 259.0 hp |
| Net Power | 232.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 899 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 132 in |
| Width to Outside of Tracks | 130 in |
| Removal Counterweight Clearance | 48 in |
| Digging Depth | 288 in |
| Digging Reach | 288 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 106 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 62,830 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 251 in |
|---|---|
| Max Reach Along Ground | 398 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 236 in |
| Max Cutting Height | 403 in |
| Shipping Length of Unit | 443 in |
| Shipping Height of Unit | 144 in |
Bucket
| Reference Bucket Capacity | 1.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.80 yd³ |
| Minimum Bucket Capacity | 1.20 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 263 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 401 in |
| Max Loading Height | 278 in |
| Max Reach Along Ground | 407 in |
| Shipping Length of Unit | 438 in |
| Shipping Height of Unit | 145 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 291 in |
|---|---|
| Max Cutting Height | 407 in |
| Max Loading Height | 285 in |
| Max Vertical Wall Digging Depth | 251 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 433 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 324 in |
|---|---|
| Max Cutting Height | 422 in |
| Max Reach Along Ground | 463 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Dig Depth | 287 in |
| Shipping Length of Unit | 433 in |
Boom/Stick Excavator Option 5
| Max Digging Depth | 244 in |
|---|---|
| Max Reach Along Ground | 386 in |
| Max Cutting Height | 393 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Dig Depth | 226 in |
| Shipping Height of Unit | 145 in |
| Shipping Length of Unit | 431 in |
