Hyundai

ROBEX 450LC-7

Excavator

Max Digging Depth
269 in
Max Digging Depth
288 in
Net Power
320.0 hp
All excavators

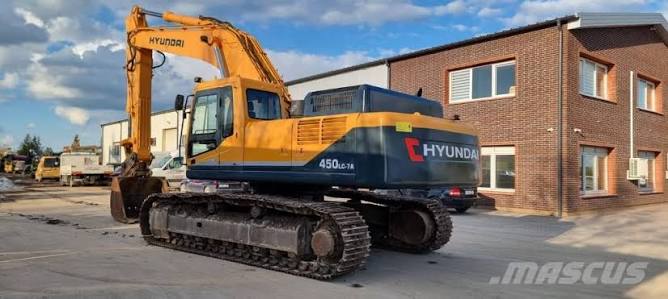

Hyundai ROBEX 450LC-7 Excavator
1 / 5
Image 1 of 5
Image: bossmachinery.nl

Specifications

77 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity161.2 gal
Hydraulic Pump Flow Capacity200.8 gal/min
Hydraulic System Fluid Capacity100.4 gal
Hydraulic System Relief Valve Pressure4,690 psi
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity13.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelQSM11-C
Displacement659 in³
Power Measured @1,900 rpm
Gross Power353.0 hp
Net Power320.0 hp
Aspirationturbocharged
Torque Measured @1,300 rpm
Max Torque1,320 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab128 in
Length of Track on Ground176 in
Tail Swing Radius148 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance53 in
Digging Depth300 in
Digging Reach300 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side53
Number of Carrier Rollers per Side2
Drawbar Pull82,000 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth269 in
Max Reach Along Ground431 in
Max Loading Height283 in
Max Vertical Wall Digging Depth236 in
Max Cutting Height418 in
Shipping Length of Unit482 in
Shipping Height of Unit151 in

Bucket

Bucket specifications
Reference Bucket Capacity2.90 yd³
Maximum Bucket Capacity4.20 yd³
Minimum Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth288 in
Max Vertical Wall Digging Depth230 in
Max Cutting Height417 in
Max Loading Height285 in
Max Reach Along Ground448 in
Shipping Length of Unit479 in
Shipping Height of Unit149 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth307 in
Max Cutting Height434 in
Max Loading Height302 in
Max Vertical Wall Digging Depth259 in
Max Reach Along Ground469 in
Shipping Length of Unit473 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth331 in
Max Cutting Height444 in
Max Reach Along Ground492 in
Max Loading Height311 in
Max Vertical Wall Dig Depth288 in
Shipping Length of Unit472 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth352 in
Max Reach Along Ground511 in
Max Cutting Height454 in
Max Loading Height320 in
Max Vertical Wall Dig Depth304 in
Shipping Height of Unit162 in
Shipping Length of Unit469 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth250 in
Max Reach Along Ground409 in
Max Cutting Height402 in
Max Loading Height269 in
Max Vertical Wall Dig Depth215 in
Shipping Length of Unit462 in
Shipping Height of Unit158 in
