Hyundai

ROBEX 480LC-9

Excavator

Max Digging Depth
291 in
Net Power
342.0 hp
All excavators

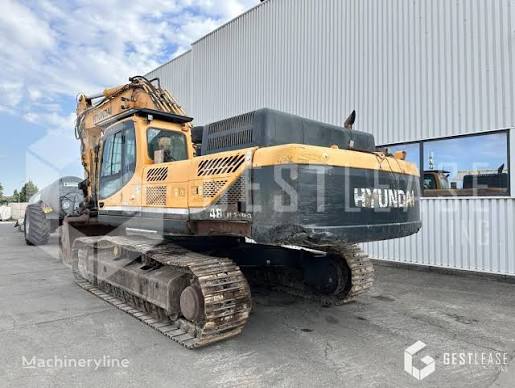

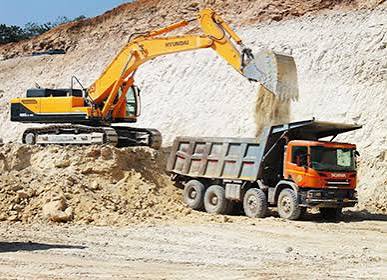

Hyundai ROBEX 480LC-9 Excavator
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity164.1 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Fluid Capacity100.4 gal
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity13.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelQSM11
Displacement659 in³
Power Measured @1,900 rpm
Gross Power357.0 hp
Net Power342.0 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque1,235 lb-ft
Engine MakeCummins
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab126 in
Length of Track on Ground216 in
Tail Swing Radius149 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance52 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge108 in
Number of Track Rollers per Side9
Shoe Size24 in
Number of Shoes per Side53
Number of Carrier Rollers per Side2
Drawbar Pull8,480,000 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height281 in
Max Vertical Wall Digging Depth235 in
Max Cutting Height417 in
Shipping Length of Unit483 in
Shipping Height of Unit151 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth291 in
Max Vertical Wall Digging Depth234 in
Max Cutting Height415 in
Max Loading Height283 in
Max Reach Along Ground448 in
Shipping Length of Unit481 in
Shipping Height of Unit149 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth308 in
Max Cutting Height433 in
Max Loading Height300 in
Max Vertical Wall Digging Depth260 in
Max Reach Along Ground469 in
Shipping Length of Unit475 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth333 in
Max Cutting Height442 in
Max Reach Along Ground492 in
Max Loading Height308 in
Max Vertical Wall Dig Depth283 in
Shipping Length of Unit475 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth251 in
Max Reach Along Ground409 in
Max Cutting Height401 in
Max Loading Height267 in
Max Vertical Wall Dig Depth214 in
Shipping Height of Unit159 in
Shipping Length of Unit465 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth456 in
Max Reach Along Ground639 in
Max Cutting Height546 in
Max Loading Height411 in
Max Vertical Wall Dig Depth407 in
Shipping Length of Unit539 in
Shipping Height of Unit205 in
