IHI

55N-2

Mini Excavator

Operating Weight
12,733 lb
Max Digging Depth
152 in
Net Power
55.5 hp
All mini excavators

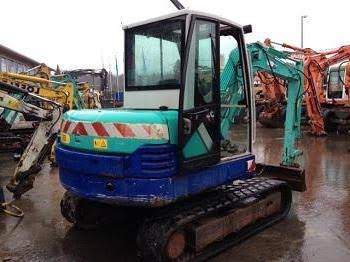

IHI 55N-2 Mini Excavator
1 / 5
Image 1 of 5
Image: thompsonrentalservices.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,733 lb
Fuel Capacity19.8 gal
Hydraulic Pump Flow Capacity29.7 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV94L
Net Power55.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab98 in
Tail Swing Radius61 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge64 in
Max Travel Speed2.8 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth152 in
Max Vertical Wall Digging Depth117 in
Max Loading Height162 in
Shipping Length of Unit226 in
Max Cutting Height234 in
Shipping Height of Unit98 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
