IHI

65NX

Mini Excavator

Operating Weight
14,400 lb
Max Digging Depth
155 in
Net Power
55.0 hp
All mini excavators

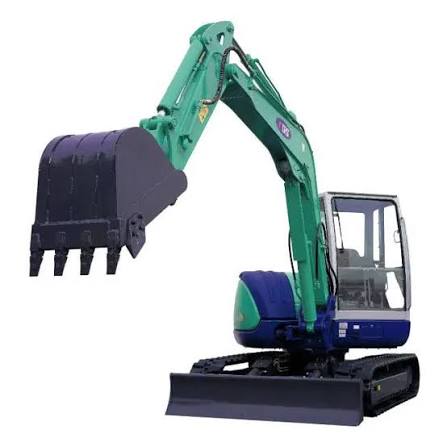

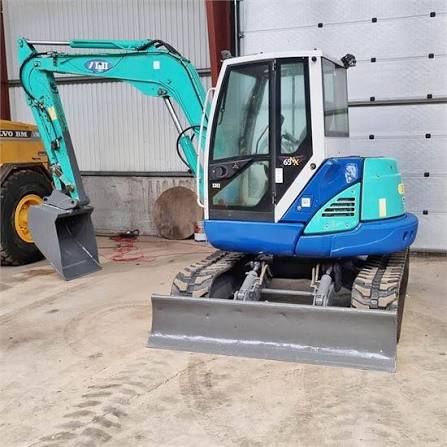

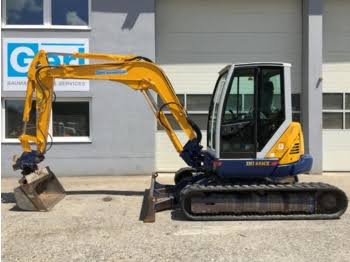

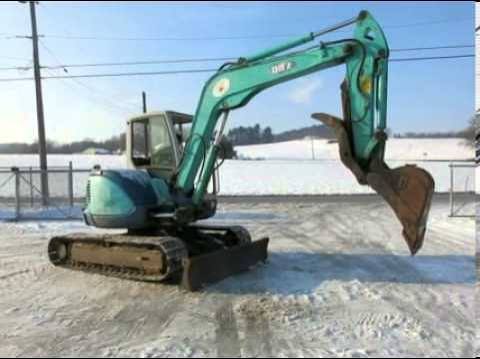

IHI 65NX Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,400 lb
Fuel Capacity22.5 gal
Hydraulic Pump Flow Capacity39.6 gal/min
Hydraulic System Relief Valve Pressure3,553 psi

Engine

Engine specifications
Engine Model4TNV94L
Net Power55.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab102 in
Tail Swing Radius42 in
Width to Outside of Tracks84 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge67 in
Max Travel Speed3.3 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth155 in
Max Vertical Wall Digging Depth119 in
Max Loading Height167 in
Shipping Length of Unit231 in
Max Cutting Height239 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
