IHI

CL35

Compact Track Loader

Operating Weight
7,827 lb
Max Speed - high range
6.3 mph
Displacement
203 in³
Gross Power
65.8 hp
All compact track loaders

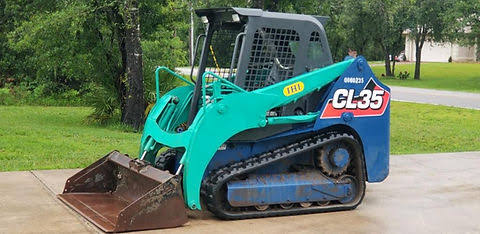

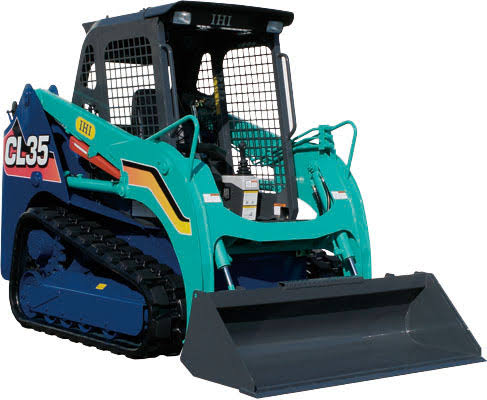

IHI CL35 Compact Track Loader
1 / 5
Image 1 of 5
Image: aprentalshk.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,827 lb
Max Speed - high range6.3 mph
Max Speed - low range4.2 mph
Fuel Capacity24.1 gal

Engine

Engine specifications
Engine Model4TNV98
Displacement203 in³
Power Measured @2,400 rpm
Gross Power65.8 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,988 psi
Auxiliary hydraulic flow17.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab85 in
Reach at Max Lift and Dump30 in
Width Over Tracks66 in
Clearance at Max Lift and Dump154 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Length of Track on Ground55 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load2,458 lb
Tip Capacity4,916 lb
