Ingersoll Rand

DD30

Smooth Drum Roller

Operating Weight
6,901 lb
Max Speed
6.6 mph
Drum Width
54 in
Gross Power
32.8 hp
All smooth drum rollers

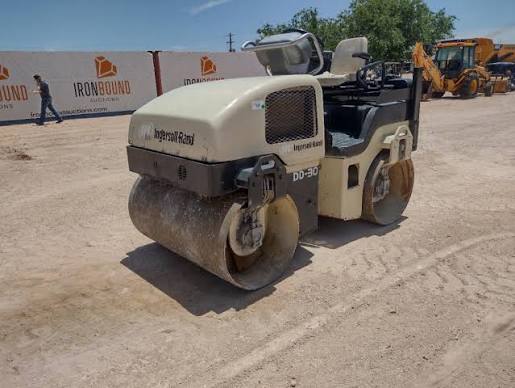

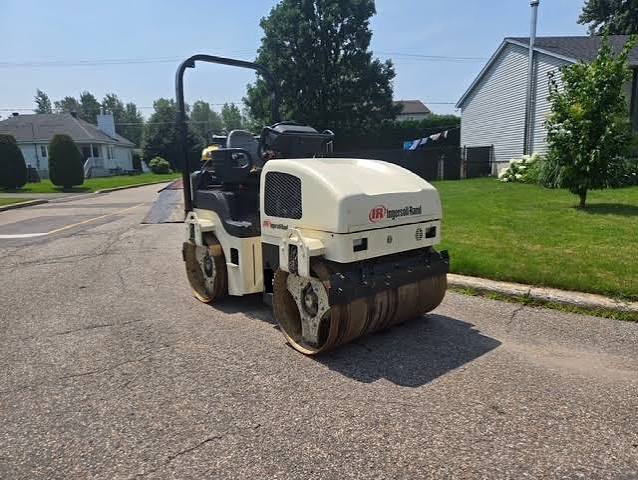

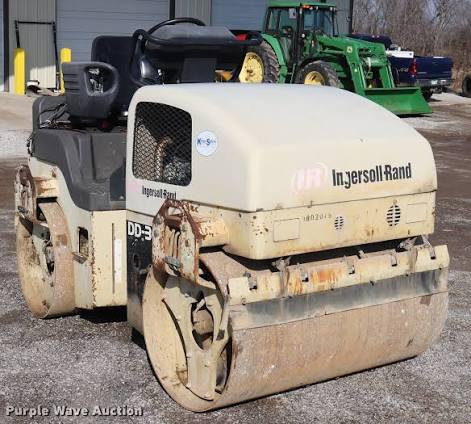

Ingersoll Rand DD30 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,901 lb
Max Speed6.6 mph
Fuel Capacity18.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity22.5 gal
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelV2203M
Gross Power32.8 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab100 in
Wheelbase6 in
Overall Length9 in
Overall Width59 in

Drum

Drum specifications
Drum Width54 in
Drum Diameter29 in
Vibration Frequency 167 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High7,486 lb

Comparable machines

Other smooth drum rollers in a similar weight class.
