Ingersoll Rand
Sakai
GW750

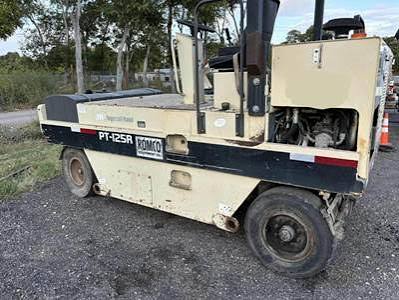

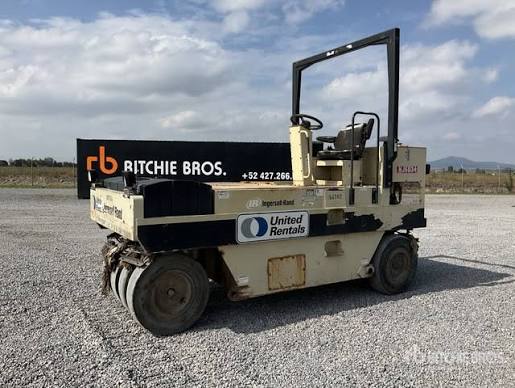

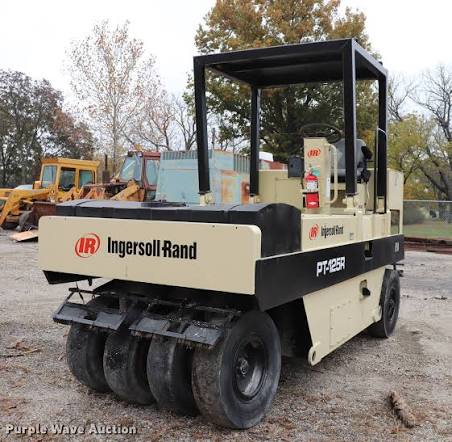

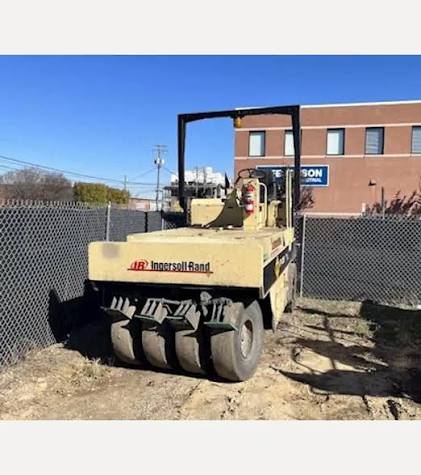

Pneumatic Roller
23 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Fuel Capacity | 100.2 gal |
|---|---|
| Water Spray Tank Fluid Capacity | 100.2 gal |
| Operating Width | 78 in |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 16.2 gal |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | B 3.3T-85 |
|---|---|
| Gross Power | 86.0 hp |
Weights
| Operating Weight - standard | 9,094 lb |
|---|---|
| Operating Weight - max ballast | 16,711 lb |
| Average Weight per Wheel - Max Ballast | 2,705 lb |
| Average Weight per Wheel - Standard | 1,010 lb |
Dimensions
| Wheelbase | 115 in |
|---|---|
| Overall Length | 13 in |
| Overall Width | 78 in |
| Height - Top of ROPS/FOPS | 127 in |
| Turning Radius - Outside | 244 in |
Tires & Wheels
| Number of Tires - Rear | 5 |
|---|---|
| Number of Tires - Front | 4 |
| Wheel Track/Tire Overlap | 1 in |
| Standard Tire Size | 7.5-15 14-ply |
| Oscillation Angle | 3 ° |
Drum
| Drum Width | 68 in |
|---|
