Sakai

GW750

Pneumatic Roller

Max Speed
5.6 mph
Gross Power
103.3 hp
Overall Length
15 in
Overall Width
88 in
All pneumatic rollers

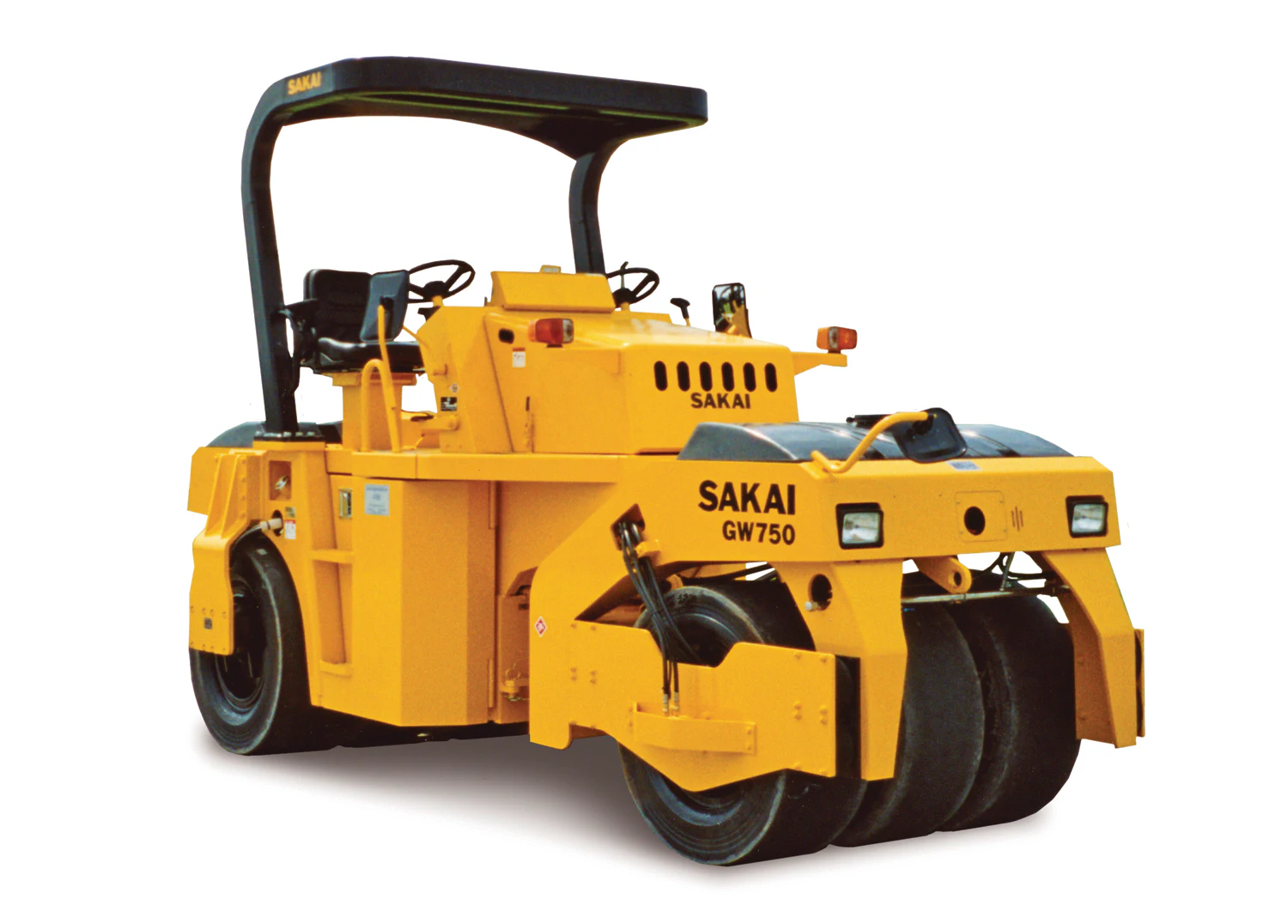

Sakai GW750 Pneumatic Roller
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Max Speed5.6 mph
Fuel Capacity34.4 gal
Water Spray Tank Fluid Capacity158.6 gal
Operating Width77 in
Hydraulic System Fluid Capacity17.2 gal

Engine

Engine specifications
Engine ModelDD-4BG1T Diesel engine
Displacement264 in³
Power Measured @1,600 rpm
Gross Power103.3 hp
Aspirationturbocharged
MakeIsuzu DD-4BG1T

Weights

Weights specifications
Operating Weight - standard18,739 lb
Operating Weight - max ballast20,062 lb

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase119 in
Overall Length15 in
Overall Width88 in
Height - Top of ROPS/FOPS119 in
Turning Radius - Inside136 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front3
Standard Tire Size17/70-20-12PR (OR)

Drum

Drum specifications
Vibration Frequency2,400 vpm
