Dynapac

CP1200W

Pneumatic Roller

Max Speed
11.2 mph
Gross Power
73.8 hp
Overall Length
144 in
Overall Width
83 in
All pneumatic rollers

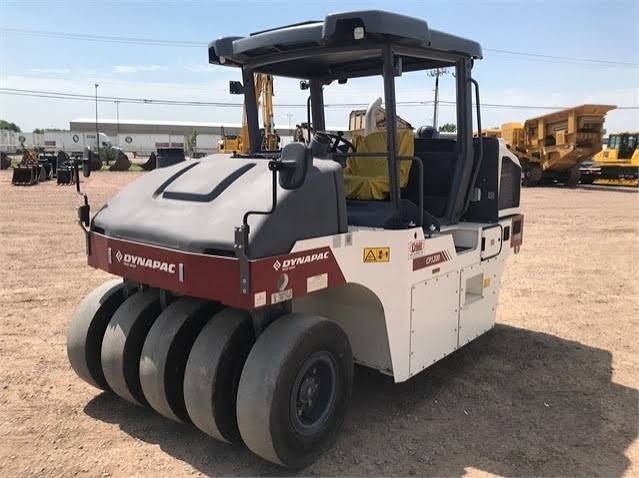

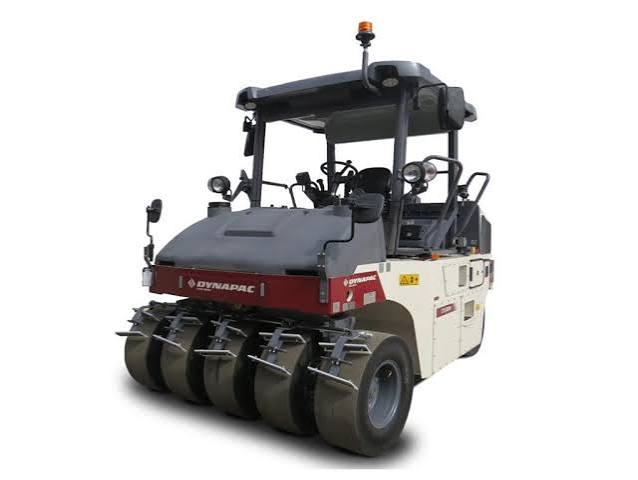

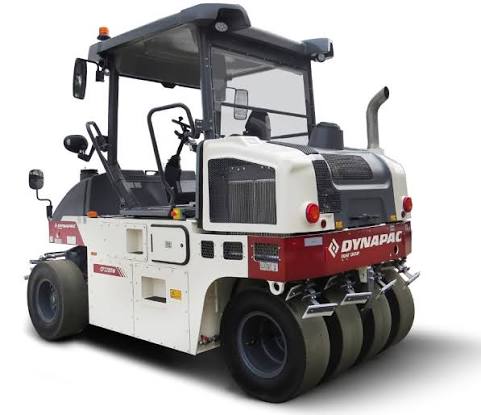

Dynapac CP1200W Pneumatic Roller
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.2 mph
Fuel Capacity57.1 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelQSF 2.8
Power Measured @2,200 rpm
Gross Power73.8 hp
Engine MakeCummins

Weights

Weights specifications
Operating Weight - standard12,677 lb
Operating Weight - max ballast26,456 lb

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase109 in
Overall Length144 in
Overall Width83 in
Height - Top of ROPS/FOPS117 in
Gradeability30.0 %
Turning Radius - Outside280 in

Compaction

Compaction specifications
Rolling width82 in
Wheel loads - with max. ballast2,932 lb
Wheel loads_without ballast1,455 lb
Water spray system spray nozzleone per tyre
Min - Tyre pressure35 psi
Tyre overlap2 in
Water spray system typePressurized electric pump
Max - Tyre pressure91 psi

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front5

General Specifications

General Specifications specifications
Engine typeCummins QSF 2.8 (T4f) — Starting 2024 Model Year
DRUM WIDTH IN. (CM)82 (208) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)151 (283) (Outside Radius) — Starting 2024 Model Year
WIDTH IN. (CM)82 (208) — Starting 2024 Model Year
