Ingersoll Rand

PT240R

Pneumatic Roller

Max Speed
11.9 mph
Gross Power
99.0 hp
Overall Length
18 in
Overall Width
91 in
All pneumatic rollers

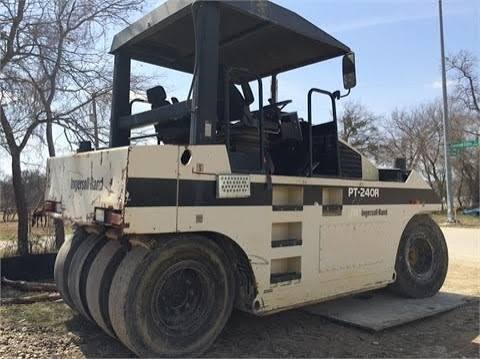

Ingersoll Rand PT240R Pneumatic Roller
1 / 5
Image 1 of 5
Image: machineryline.ng

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.9 mph
Fuel Capacity66.1 gal
Water Spray Tank Fluid Capacity75.3 gal
Operating Width89 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelCummins 4.5-C99
Gross Power99.0 hp
MakeCummins

Weights

Weights specifications
Operating Weight - standard36,068 lb
Operating Weight - max ballast52,911 lb
Average Weight per Wheel - Max Ballast6,548 lb
Average Weight per Wheel - Standard4,508 lb

Dimensions

Dimensions specifications
Wheelbase138 in
Overall Length18 in
Overall Width91 in
Height - Top of ROPS/FOPS120 in
Turning Radius - Inside339 in
Turning Radius - Outside339 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front4
Wheel Track/Tire Overlap2 in
Standard Tire Size11X20 18-PLY
Oscillation Angle5 °

Drum

Drum specifications
Drum Width78 in
