Ingersoll Rand

SD-100D

Smooth Drum Roller

Drum Width
84 in
Gross Power
125.0 hp
All smooth drum rollers

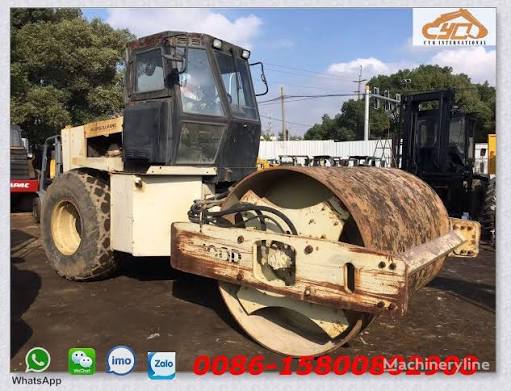

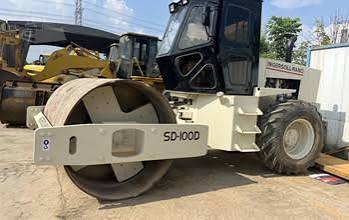

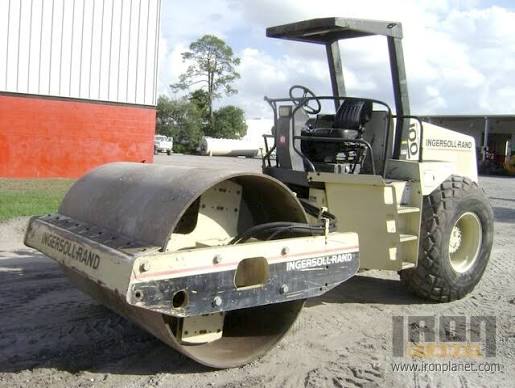

Ingersoll Rand SD-100D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity72.0 gal
Hydraulic System Fluid Capacity54.0 gal

Engine

Engine specifications
Engine ModelB3.9-C
Power Measured @2,200 rpm
Gross Power125.0 hp
Number of Cylinders4
MakeCummins

Dimensions

Dimensions specifications
Height - Top of Cab122 in
Wheelbase11 in
Width Over Tires94 in
Overall Length w/o Blade226 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Nominal Amplitude - High0 in
Centrifugal Force - High52,500 lb
Centrifugal Force - Low26,200 lb
Nominal Amplitude - Low0 in
