Ingersoll Rand

SD-122F

Smooth Drum Roller

Max Speed
7.9 mph
Gross Power
156.0 hp
All smooth drum rollers

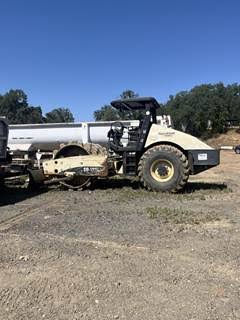

Ingersoll Rand SD-122F Smooth Drum Roller
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Max Speed7.9 mph
Operating Width90 in
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Gross Power156.0 hp
Net Power156.0 hp
Aspirationturbocharged
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab125 in
Wheelbase122 in
Width Over Tires90 in
Turning Radius - Inside136 in
Overall Length w/o Blade233 in
Width Over Wheels90 in

Transmission

Transmission specifications
Max Speed7.9 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission Typehydrostatic

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26 8PR R1

Drum

Drum specifications
Drum Diameter59 in
Vibration Frequency 128 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High65,869 lb
Vibration Frequency1,225 – 2,025 vpm
Centrifugal Force - Low64,071 lb
Nominal Amplitude - Low0 in
Pad Height5 in
Pad Surface Area21 in³
Number of Pads120
Vibratory Frequency 234 vpm

Wheels

Wheels specifications
Front Wheels Drum Diameter59 in
Front Wheels Drum Width84 in
