Ingersoll Rand

SD-77DA

Smooth Drum Roller

Operating Weight
17,346 lb
Max Speed
8.2 mph
Drum Width
66 in
Gross Power
99.0 hp
All smooth drum rollers

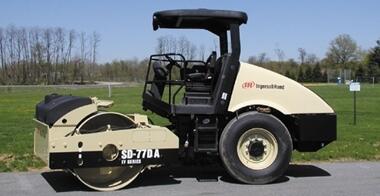

Ingersoll Rand SD-77DA Smooth Drum Roller
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,346 lb
Max Speed8.2 mph
Operating Voltage12 V
Hydraulic System Fluid Capacity130.0 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB4.5T
Gross Power99.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Wheelbase9 in
Overall Length17 in
Overall Width73 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High26,078 lb
Vibration Frequency 242 vpm
Centrifugal Force - Low5,845 lb
Nominal Amplitude - Low0 in
